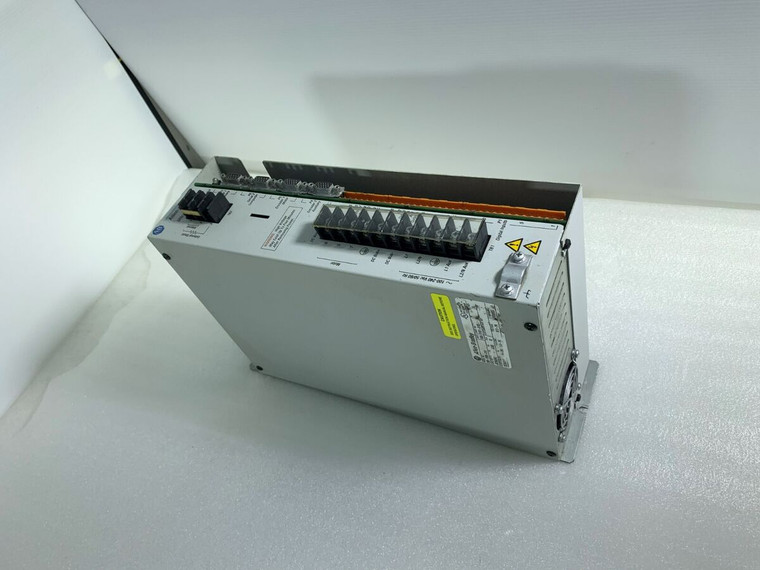

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.

Shop Used Allen Bradley 1398-PDM-150 Used Surplus
  • 1398PDM150
  • DISCONTINUED BY MANUFACTURER 11/30/2010
  • ULTRA PLUS SERIES POSITIONING SERVO DRIVE
  • 1398
  • INPUT: 170/340 VDC
  • FLA: 51
  • OUTPUT: 120/240 VAC
  • 0-400 HZ
  • FLA CONT: 65
  • FLA PEAK: 150
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 2-YEAR WARRANTY INCLUDED

Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.

Shop Used Allen Bradley 1398-PDM-150 Used Surplus
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.

Allen Bradley 1398-PDM-150 Used Surplus

Allen Bradley
Part
#1398-PDM-150
Condition:
Used
In stock icon1 in stock
$2,775.00
Adding to cart… The item has been added
Get a Repair Quote
  • 1398PDM150
  • DISCONTINUED BY MANUFACTURER 11/30/2010
  • ULTRA PLUS SERIES POSITIONING SERVO DRIVE
  • 1398
  • INPUT: 170/340 VDC
  • FLA: 51
  • OUTPUT: 120/240 VAC
  • 0-400 HZ
  • FLA CONT: 65
  • FLA PEAK: 150
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 2-YEAR WARRANTY INCLUDED
quick-delivery
QUICK DELIVERY
free-shipping
FREE SHIPPING
1-year-warranty
2 YEAR WARRANTY
esy-returns
EASY RETURNS
Questions?

Speak with a real person who will go out of the way to help!

833 839 6483
sales@texnite.com
Chat
Reviews

Allen Bradley 1398-PDM-150 Used Surplus Description

    Technical Specifications for 1398-PDM-150

ManufacturerRockwell Automation
BrandAllen-Bradley
Weight21 lbs (10 kg)
Peak Shunt Power10 kWatts
Operating Temperature32-122 F (0-50 C)
Continuous Output Power12 kWatts
Continuous Shunt Power900 Watts
Peak Output Current150 amps/Phase
Part Number/Catalog No.1398-PDM-150
Continuous Output Current65 amps/Phase
ManufacturerRockwell Automation
BrandAllen-Bradley
Weight21 lbs (10 kg)
Peak Shunt Power10 kWatts
Operating Temperature32-122 F (0-50 C)
Continuous Output Power12 kWatts
Continuous Shunt Power900 Watts
Peak Output Current150 amps/Phase
Part Number/Catalog No.1398-PDM-150
Continuous Output Current65 amps/Phase
s

About 1398-PDM-150

The Allen-Bradley 1398-PDM-150 drive is an Ultra Plus drive which is a series of integrated positioners and brushless drives in 1 module. Ultra Plus drives feature include sinusoidal commutation, analog and digital I/O, on-the-fly motion profile generators and 4-function math and logic functions. The 1398-PDM-150 drive requires a power supply module such as the 1398-PSM-50 or the 1398-PSM-125 module. Up to 6 Ultra Plus drives can be run from a single power supply module. The peak output current per phase for the 1398-PDM-150 drive is 150 Amps. The continuous output current per phase is 65 Amps. The drive continuous output power is 12 kilowatts. The range of the operating temperature is from 0 to 50 degrees Celsius and range of temperature for storage is from -40 to 80 degrees Celsius. The weight of the drive is approximately 11 kilograms. The drive dimensions are 17.5 x 9.7 x 4.5 inches.



The drive includes 2 serial ports which support RS-232C and RS-422 communication with a 1200 to 19200 baud rate.
