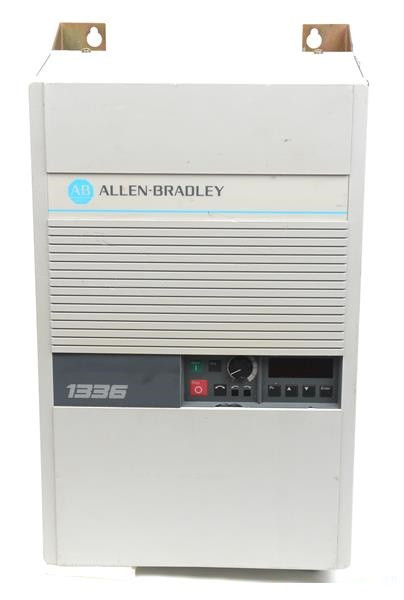

Allen Bradley 1336-B005-EOD-S1

The 1336-B005-EOD-S1 drive by Allen-Bradley is classified as a 1336 series drive. The unit features a simplified drive control and fault display screen. For ease of drive monitoring and troubleshooting, the drive comes with a local display screen and programming or control panels. These are supplied on all the drives the series as standard features, but the local control panel feature is optional. Therefore, if the users need the drive to be supplied with this feature, they should inform the manufacturer when ordering the drive. Alternatively, the 1336-B005-EOD-S1 drive’s local control panel can be added at a future date, and so the unit will be displayed with a blank plate to cover the opening where the local control panel goes.

The 1336-B005-EOD-S1 drive features an input voltage rating of 460/415/380 Volts AC. The input frequency is rated at 50 to 60 Hertz and the unit comes with an output current rating of 9.6 Amps. The drive’s enclosure is an IP 00 open enclosure while the enclosure current rating is 003, 005, 010, or 007 Amps. The unit’s KVA output is usually dependent on the input voltage rating. Thus, at 380 Volts AC, the KVA rating is 6.3. At 415 Volts AC, the KVA rating is 6.9, and at 460 Volts AC, the KVA rating is 7.6. The 1336-B005-EOD-S1 drive is built as a microprocessor-controlled unit and it is a high-performance drive that is used for controlling 3-phase induction motors. The 1336-B005-EOD-S1 drive produces 3-phase PWM output for supplying adjustable motor speed. It is a digitally programmed unit and it can be programmed from a local or remote control panel.
