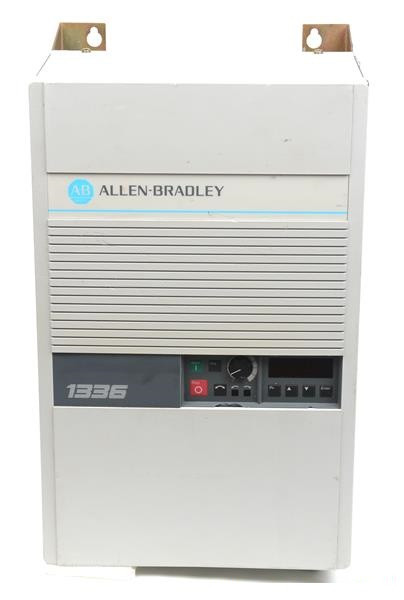

Allen Bradley 1336-B005-EOD-FA2-L3-S1

Manufactured by Allen-Bradley, the 1336-B005-EOD-FA2-L3-S1 drive is a 1336 series variable frequency AC drive. The 1336-B005-EOD-FA2-L3-S1 drive features an input frequency of 50 to 60 Hertz and it is also a 3-phase drive. It comes with an output current rating of 9.6 Amps and an input voltage of 415/460/380 Volts AC. This Allen-Bradley drive features different KVA output ratings depending on the input voltage. At 380 Volts AC, the KVA output is 6.3. At 415 Volts AC, the KVA output is rated at 6.9, while at 460 Volts AC, the KVA output is rated at 7.6. The Allen-Bradley adjustable frequency AC drive features the IP 00 open style enclosure. The enclosure current rating is rated at 3, 5, 7, and 10 Amps. The 1336-B005-EOD-FA2-L3-S1 drive also supports the optional 115 Volts AC Logic interface board. It comes with the basic control panel for accommodating the open or NEMA type 1 enclosure.

The 1336-B005-EOD-FA2-L3-S1 drive uses male and female connectors for connecting to the other drives around it. The male connectors are stationary and they feature pins that are sometimes joined by the jumpers. The female connectors are mobile and plug into the male connectors. The unit will automatically switch to its pre-programmed settings by default. It supports the “enable input” feature that is a terminal connection on the logic interface board. This connection is included to provide a similar function as the Auxiliary input. The 1336-B005-EOD-FA2-L3-S1 drive supports the hand-held terminal that easily plugs into the unit’s serial interface ports. This terminal easily allows the users to adjust the parameters while the drive is operational.
