Allen Bradley 1336-B003-ECD-L3

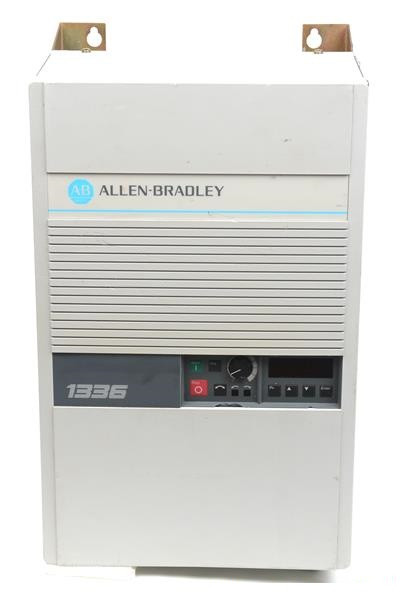

The 1336-B003-ECD-L3 is an adjustable frequency AC drive manufactured by Allen-Bradley. The Allen-Bradley 1336-B003-ECD-L3 AC Drive belongs to Series A of the Allen-Bradley adjustable frequency AC drives. The Allen-Bradley 1336-B003-ECD-L3 AC Drive feature 460 Volts input voltage at 60 Hertz and equipped with 3-phase power. The Allen-Bradley 1336-B003-ECD-L3 AC Drive is contained in a NEMA Type 4 (IP56) Enclosure Type chassis. The Allen-Bradley 1336-B003-ECD-L3 AC Drive has an auxiliary interlock input terminal connection on the Logic interface board that provides a necessary input for the start commands.

The Allen-Bradley 1336-B003-ECD-L3 AC Drive will not recognize a start command unless the auxiliary input is logically accurate. The auxiliary interlock is supplied by the users as a circuit such as a reset, overload, or some logical true-state connection associated with the drive auxiliary input. When the Allen-Bradley 1336-B003-ECD-L3 AC Drive incurs default functions; the AC drive automatically changes to a pre-programmed setting by the manufacturer. The user should wear a wrist grounding strap when servicing the Allen-Bradley 1336-B003-ECD-L3 AC Drive to prevent damaging the AC drive components due to electrostatic discharge. When installing the Allen-Bradley 1336-B003-ECD-L3 AC Drive, the users should clean all surfaces between Bridge Rectifier BR1 and the heatsink using a soft, clean cloth.
