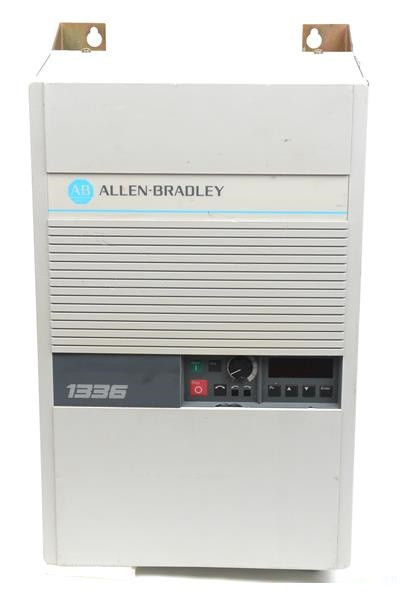

Allen Bradley 1336-B010-EOD Used Surplus

The 1336-B010-EOD is an Allen-Bradley motor controller with a user-configurable frequency. The controller belongs to the 1336 family of variable frequency drives with a drive rating of B010. Drives with this rating operate at a nominal input voltage of 415 Volts but can also accommodate a high voltage of up to 460 Volts AC and a low one of 380 Volts AC. For the apparent power, the 1336-B010-EOD, as with other drives in the 1336 family of adjustable frequency drives with the B010 drive rating, has 12.2 kVA while operating at its nominal voltage. The 1336-B010-EOD is intended to be installed in open style enclosures which have an IP00 international protection rating. The 1336-B010-EOD is rated to be used in the control of induction motors which have a horsepower of 10 Horsepower.

For proper functioning of the controller, the operating environment temperature should not exceed 40 degrees Celsius and it should not fall below 0 degrees Celsius around the heatsinks, while the chassis components should not be used at a temperature higher than 50 degrees Celsius and lower than 0 degrees Celsius. Additionally, the 1336-B010-EOD, as with other drives in the same series, have a maximum rated operating altitude of 1,000 meters without derating, a 1G maximum vibration with 0.006 inches of displacement, and a rated maximum operating shock of 15 G for a period of 11 milliseconds. The relative humidity rating for the 1336-B010-EOD is capped at between 5 and 95%, without condensation. When storing the 1336-B010-EOD, a temperature of between -40 and 85 degrees Celsius should be maintained.
