The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
Revisions: Ser A
Description: This Allen Bradley 3 horsepower VFD is a 9.6 A rated AC drive. In addition, this VFD is a 2.2 kilowatt rated drive. This adjustable frequency drive is a 240 VAC (60Hz) drive. This VFD has a B frame size and is housed in a wall/machine mount = IP66 enclosure type. This PF70 has a full numeric LCD HIM unit included on the faceplate.
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.

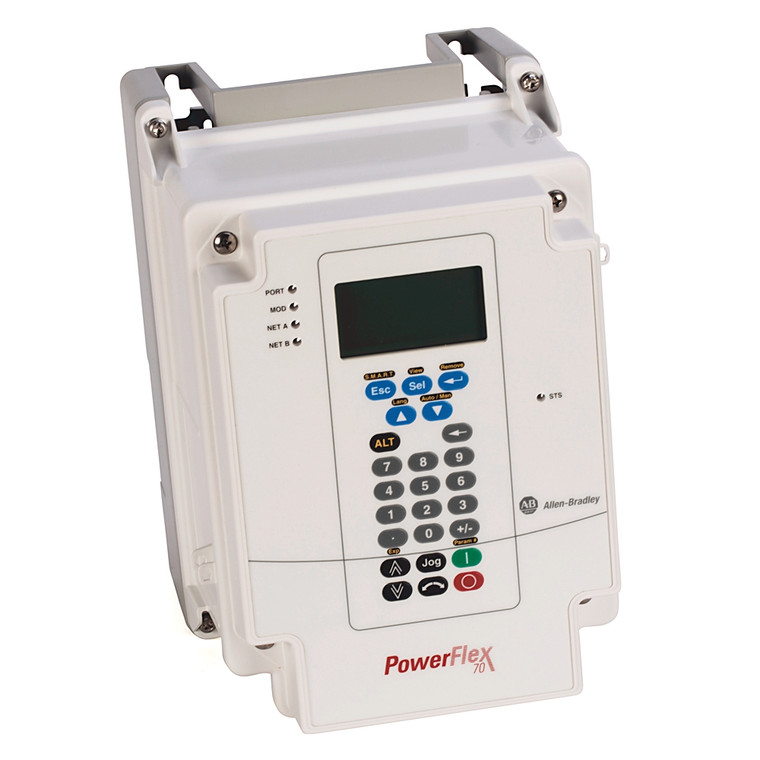

Allen Bradley 20AB9P6C3AYNNNC0 PowerFlex 70 AC Drive 9.6 A at 3 Hp 20A
Allen Bradley- Part
- #20AB9P6C3AYNNNC0
Revisions: Ser A
Description: This Allen Bradley 3 horsepower VFD is a 9.6 A rated AC drive. In addition, this VFD is a 2.2 kilowatt rated drive. This adjustable frequency drive is a 240 VAC (60Hz) drive. This VFD has a B frame size and is housed in a wall/machine mount = IP66 enclosure type. This PF70 has a full numeric LCD HIM unit included on the faceplate.
QUICK DELIVERY
FREE SHIPPING
2 YEAR WARRANTY
EASY RETURNS
Reviews
20AB9P6C3AYNNNC0
Description: PowerFlex 70
Input Voltage
240 (208) VAC, 3 PH
240 (208) VAC, 3 PH
Output Current
9.6 Amps
9.6 Amps
Enclosure
Wall / Machine Mount - IP66/NEMA Type 4X/12 (Indoor Use), with conformal coating
Wall / Machine Mount - IP66/NEMA Type 4X/12 (Indoor Use), with conformal coating
Frame Size
Frame Size B
Frame Size B
Output Current Information
Output Amps: 9.6A Cont, 10.6A 1 Min, 14.4A 3 Sec
Output Amps: 9.6A Cont, 10.6A 1 Min, 14.4A 3 Sec
Brake IGBT
Brake IGBT
Brake IGBT
EMC Filtering Options
Without CE compliant filter
Without CE compliant filter
Base Plus Options
Base Plus Options Method
Base Plus Options Method
Human Interface Module
LCD Display, Full Numeric Keypad
LCD Display, Full Numeric Keypad
Internal Communication Module
No Communication Module
No Communication Module
The product offered is sold as used surplus. Texnite is not an authorized surplus dealer or affiliate of the Manufacturer associated with this product. It's possible that the product may contain older date codes or belong to an earlier series compared to items available directly from the factory or authorized dealers. As Texnite is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply.
Although numerous Allen-Bradley PLC products may contain pre-installed firmware, Texnite does not confirm whether a PLC product has firmware or if the firmware corresponds to the revision level required for your specific application. Additionally, Texnite does not guarantee or imply your capability or entitlement to download or acquire firmware for the product from Rockwell, its distributors, or any other source. Furthermore, Texnite does not assert your right to install any such firmware on the product. Texnite neither obtains nor provides firmware on behalf of customers. It remains your responsibility to adhere to the terms stated in any End-User License Agreement or a similar document related to obtaining or installing firmware.
Technical Specifications for 20AB9P6C3AYNNNC0
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 20AB9P6C3AYNNNC0 |
| Voltage | 240V AC |
| Ph | 3 |
| Amps | 9.6 |
| kW(Hp) | 2.2 (3.0) |
| Frame | B |
| Enclosure | Wall/Machine Mount = IP66, NEMA/UL Type 4X/12 for indoor use only |
| Interface Module | Full Numeric LCD |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Not Filtered A & B Frames (Optional) C, D & E Frames |
| Network Type | None |
| Control | Enhanced |
| Safe Off | No |
| Feedback | No Feedback - Enhanced Control |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 20AB9P6C3AYNNNC0 |
| Voltage | 240V AC |
| Ph | 3 |
| Amps | 9.6 |
| kW(Hp) | 2.2 (3.0) |
| Frame | B |
| Enclosure | Wall/Machine Mount = IP66, NEMA/UL Type 4X/12 for indoor use only |
| Interface Module | Full Numeric LCD |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Not Filtered A & B Frames (Optional) C, D & E Frames |
| Network Type | None |
| Control | Enhanced |
| Safe Off | No |
| Feedback | No Feedback - Enhanced Control |
About 20AB9P6C3AYNNNC0
The Allen-Bradley 20AB9P6C3AYNNNC0 is a low-voltage adjustable frequency AC drive that belongs to the Allen-Bradley PowerFlex70 series and it has a 3-phase, 6-pulse voltage rating of 240V AC and an ND rating of 11 A, 3 HP, and 2.2 kW at 208V and at 60 Hz input. This Frame D drive has an output amps rating of 9.6 A when continuous, 10.6 A at 1 minute, and 14.4 A at 3 seconds, and it has an HP rating of 3 HP at normal duty and 2 HP at heavy-duty when it has an input of 240V AC. When the input of this drive is lowered to 208V AC, its output amps become 11 A when continuous, 12.1 A at 1 minute, and 16.5 A at 3 seconds, and its kW are 2.2 kW at normal duty and 1.5 kW at heavy-duty. The 20AB9P6C3AYNNNC0 drive should only operate at ambient temperatures between 0 and 50 °C and stored at -40 and 70 °C temperatures.
The features on this drive include speed control and torque control that works with or without an encoder feedback present, a Pjump and traverse for Fibers application, and a common industrial protocol for communication. Available motor control options of the 20AB9P6C3AYNNNC0 drive are the flux vector control, the volts per Hertz control, and the sensorless vector control. This drive is suitable for applications such as precise torque regulation and speed regulation, closed loop speed regulation, and also open loop speed regulation. Also available on the 20AB9P6C3AYNNNC0 drive are a full-numeric LCD human interface module (HIM), manual documentation, IGBT brake, and enhanced control. Its NEMA/UL Type 4X/12, IP66 enclosure rating means that it is for indoor use only but it can be wall or machine-mounted.
Technical Description of 20AB9P6C3AYNNNC0
This Allen Bradley PowerFlex 70 is a 2.2 (3.0) kW(Hp) AC Drive. This PF 70 comes with Enhanced Control, a Full Numeric LCD, and w/Brake. This AB VFD is Frame size B and powered with 240V AC 3 Phase and 3 Amps.
