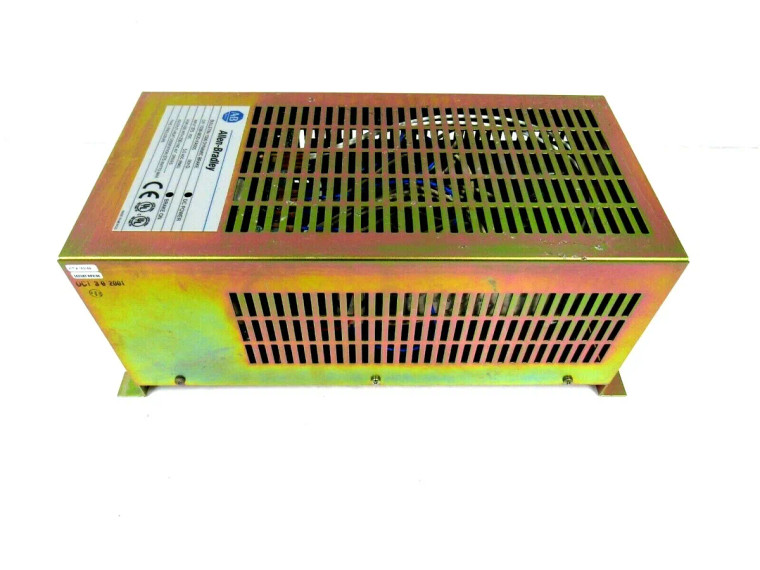

Allen Bradley 1336-MOD-KB010

The 1336-MOD-KB010 device is an AC Drive Dynamic Braking Assembly by Allen Bradley. With a voltage rating of 380 to 460 Volts AC, the 1336-MOD-KB010 AC Drive ensures higher performance levels. The 1336-MOD-KB010 heavy-duty dynamic braking system offers a self-contained NEMA Type 1 enclosed assembly, which has been wired to the 1336 AC drive unit. The highly dynamic braking system offered by the 1336-MOD-KB010 unit is capable of increasing the overall braking torque capabilities of the given drive by up to 100%. The 1336-MOD-KB010 AC drive braking unit comes with dimension specifications of 28 x 24 x 20 inches, weighing around 25 pounds. The most effective combination of the given 1336-MOD-KB010 unit (along with its sibling 1336-MOD-KB050 unit) is operated in a parallel manner to ensure an equivalent Dynamic Brake Resistance of around 8.76 Ohms. A typical Dynamic Brake Module drive consists of a Chopper Module (consisting of a Chopper transistor along with related control components) and a Dynamic Brake Resistor. The dynamic brake modules are designed to be operated in parallel when the current rating tends to be insufficient for the given set of industry-specific applications. One particular dynamic brake module is designated the role of the Master Dynamic Brake Module, while all other modules are considered Follower Modules.

The 1336-MOD-KB010 dynamic braking unit must be installed only in the vertical position. Each dynamic brake enclosure must be mounted outside any other given enclosure. It must then be exposed to the unrestricted circulation of air to allow the proper dissipation of heat. There must be a 304.8 millimeter between the brake enclosures and all other enclosures, including the 1336-MOD-KB010 AC drive.
