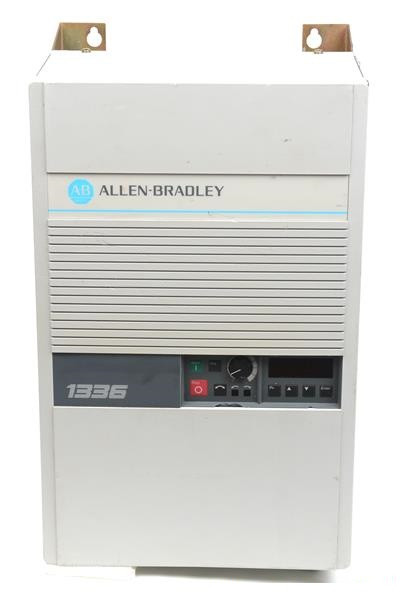

Allen Bradley 1336-B007-EAD-L3

The Allen Bradley 1336-B007-EAD-L3 Classic Adjustable Frequency Drive (AC) is a digital variable frequency AC drive designed for high-performance control of 3-phase induction motors in much industrial application with speed control requirements. It produces an adjustable output voltage and contains functions such as a programmable output frequency, adjustable to match the desired motor speed, and it also has the self-diagnosing capability which monitors output power and control parameters for real-time preventive maintenance. The 1336-B007-EAD-L3 has a maximum applied 3-phase input of 460 Volt AC, with an acceptable input range of -10% to +10%, and it has an input current rating of 13.3 Ampere. It has an output power rating of 10.4 Kilo Volt-Ampere (KVA), and it offers 0.95 rated angular displacement power factor. It is built to deliver BUS voltage control/regulation, with digitally programmed current limiting (fast acting), and depending on the integrity of user-supplied external circuit, this drive can faultlessly ride through 2 seconds power loss. The 1336-B007-EAD-L3, similarly to every 1336 Classic drives, comes with removable Metal Oxide Varistor, wired in either line-to-line, or line-to-ground configuration, to provide Line Transient Protection (surge suppression), and phase-to-ground plus phase-to-phase protection. It also provides motor overload protection (class 10), and it has an overload capacity of 180% of output rating. It has 2 separate times (Accel/Decel), programmed independently from 0 seconds to 600 seconds, and it has 115 Volt AC Logic Interface Board option, which provides a means of signals and commands to the drive via 115 volt AC signal. The 1336-B007-EAD-L3 comes with NEMA Type 1 rated indoor enclosure, designed to provide some degree of protection to personnel from hazardous internal components, and it also has an ambient cabinet temperature bracket of 0 to 40 degree Celsius. The 1336-B007-EAD-L3 weighs approximately 16.5 Kilograms (36.3 pounds), and has an aggregate mounting dimension of 283.0 x 477.0 x 223.0 millimeters (11.3 x 18.75 x 8.76 inches).
