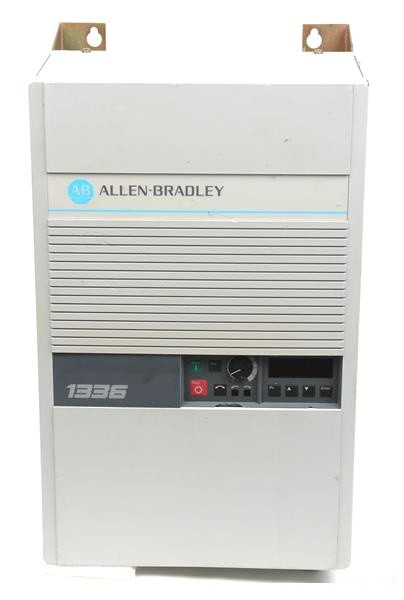

Allen Bradley 1336-B003-EAD-L2

The 1336-B003-EAD-L2 is an adjustable frequency AC drive. The 1336-B003-EAD-L2 has been manufactured by Allen-Bradley and it belongs to the 1336 series of microprocessor-controlled drives. The 1336-B003-EAD-L2 offers a high level of performance that is ideal for controlling three-phase induction motors. This exceptional reliability makes the 1336-B003-EAD-L2 ideal for use in critical commercial and industrial applications. The 1336-B003-EAD-L2 is a three-phase pulse width modulation drive that provides adjustable frequency output, allowing variation when it comes to motor speed. The output voltage for the drive comes as a function of the output frequency that can be adjusted to comply with the motor parameters, ensuring an optimal motor performance.

The 3 Horsepower drive also contains 3.9 KVA at 380 Volts AC, 4.3 KVA at 415 Volts AC, and 4.8 KVA at 460 Volts AC. The 1336-B003-EAD-L2 comes as a NEMA Type 1 (IP20) enclosure that comes with an enclosure amperage rating of 003, 005, 007, and 010. The 1336-B003-EAD-L2 supports a voltage rating of 380/415/460 Volts AC with a frequency rating of 50 to 60 Hertz. The 1336 series of Allen-Bradley industrial automation drives come with a wide range of designs and approaches for all speed control requirements. The drives deliver performance in conjunction with SMPO devices and modules, giving a superior advantage to industrial applications. The operating ambient temperature depends on the specific condition of the drive. The open operating temperature range is 0 to 40 degrees Celsius while the storage ambient temperature range is -40 to +85 degrees Celsius. The relative humidity for the 1336-B003-EAD-L2 is 5 to 95% non-condensing at all ratings.
