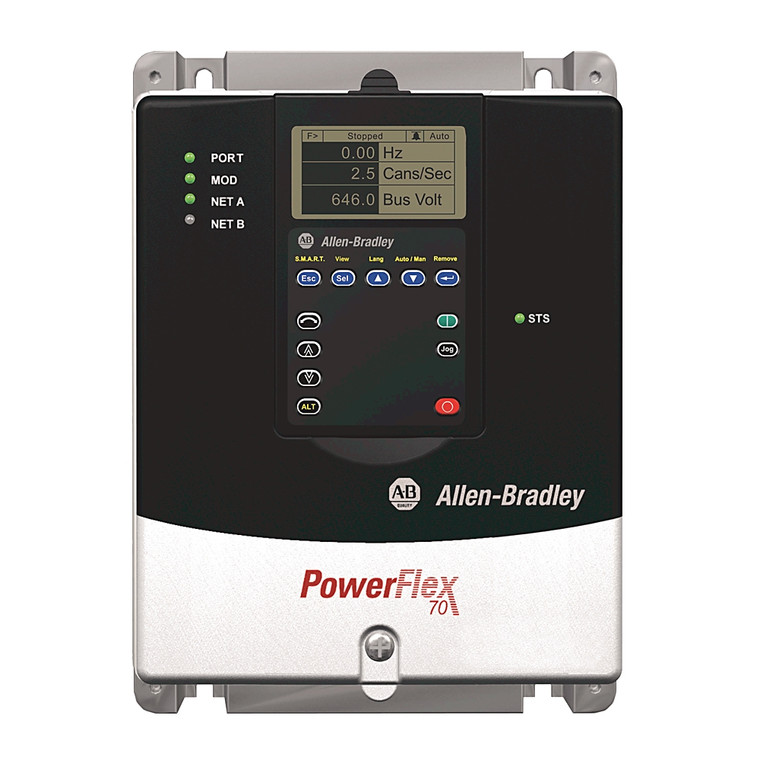

Allen Bradley 20AD5P0A3AYNNNC0 PowerFlex 70 AC Drive 5 A at 3 Hp 20A Used Surplus

The 20AD5P0A3AYNNNC0 is a PowerFlex 70 AC drive. The drive features a voltage rating of 480 Volts AC and a current rating of 5 Amps. The drive generates an output of 3 Horsepower at a normal load. The drive has been manufactured by Allen-Bradley. The drive comes with 6 digital inputs, 1 PTC input, 2 analog inputs, 2 form C relay outputs, and 1 analog output. The drive has a Frame B body and it uses a panel-mounted enclosure with an IP20 rating. The enclosure of the drive is not water-resistant. The enclosure is also referred to as the NEMA/UL Type 1 enclosure. For braking purposes, the drive comes with an IGBT braking system with no braking resistor. No communication adapter is present in this drive. The 20AD5P0A3AYNNNC0 drive uses an enhanced control mechanism but the encoder feedback module is not included. The drive has been built with EMC capability and it meets the CE and the EMC requirements.

The 20AD5P0A3AYNNNC0 uses an integrated full numeric keypad and a backlit display as the human-machine interface module. The module supports different languages and it is easy to use. The module has a calculator-like keypad for faster data entry. The users can feed input into the drive by using the keypad. The keypad contains the navigational keys, the function keys, and the numerical keys. A heatsink thermistor is present in the drive and it is controlled by using a microprocessor. It trips when there is an excessive temperature inside the drive. The drive comes with protective features like the overcurrent trip, the ground fault protection, and the short circuit trip. The 20AD5P0A3AYNNNC0 can support line transients of up to 6000 volts peak according to the IEEE standards and the control logic noise immunity can support up to 1500 Volts peak of arc transients. The drive has a power ride thru of 15 milliseconds at a full load and a logic control ride-thru for 0.5 seconds minimum.
