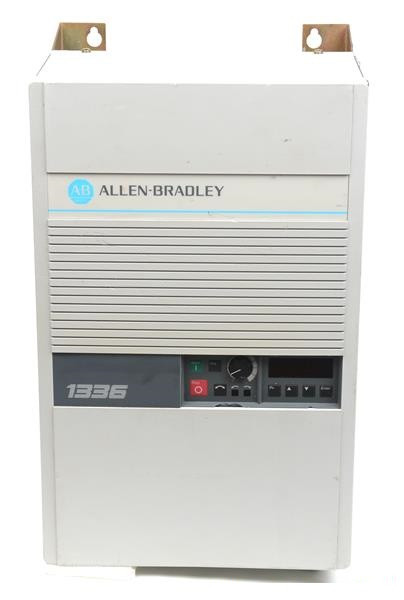

Allen Bradley 1336-B010-EAD-S1 Used Surplus

The 1336-B010-EAD-S1 is a 3-phase controller used to drive induction motors in an industrial environment with sensitive applications. The S1 part on the 1336-B010-EAD-S1 indicates that the controller has a Serial Port Connector Cover Plate installed in the factory. The controller has an output current of 17 Amps and a minimum operating voltage of 380 Volts AC. Connections to the 1336-B010-EAD-S1 are made through a terminal block located on the lower part of the controller. Additionally, the 1336-B010-EAD-S1 provides a fault code and a programming and display. The fault code display is for displaying the 37 error codes while the programming display is mainly used when viewing and programming parameters on the 1336-B010-EAD-S1.

Some features found on the local display and programming panel are a decimal point on the extreme right to signal that the drive is in the programming mode, allowing the parameters to be changed, 4 push buttons; 1 to navigate from the operating display to the viewing display (PR), 1 to choose from viewing to programming (Enter), and the increment and decrement buttons which increase or decrease the parameter value when the drive is in the programming mode. If these 2 pushbuttons (increment and decrement) are pressed simultaneously, the programming session will be ended, taking the display to the operating display. Note that after an error has been corrected, the 1336-B010-EAD-S1 expects the input power to the drive to be cycled or the stop button pressed so that it clears the fault.
