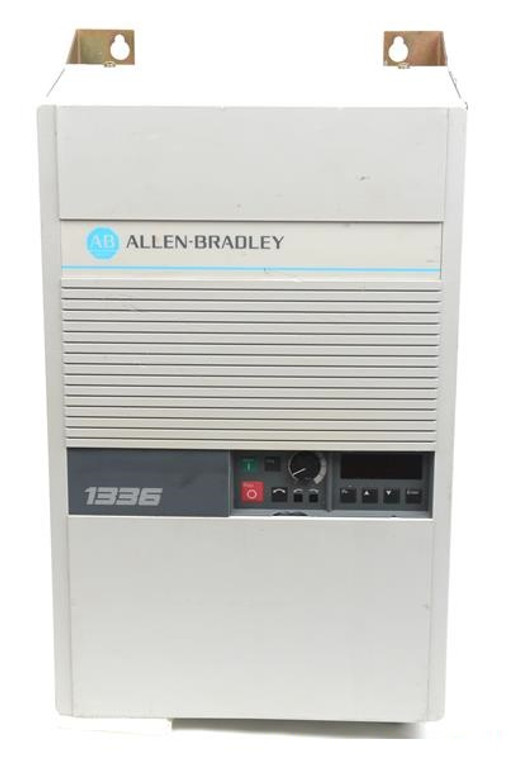

Allen Bradley 1336-B003-EAD-FA2-L3

The 1336-B003-EAD-FA2-L3 is a microprocessor variable frequency drive that is manufactured by Allen-Bradley. The 1336-B003-EAD-FA2-L3 is manufactured under the 1336 series drives and it is designed to ensure exceptional reliability while controlling the three-phase induction motors. These are the industrial and commercial motors where the 1336-B003-EAD-FA2-L3 provides a varying output to vary the motor speed. For precise control and accurate setup, the 1336-B003-EAD-FA2-L3 comes as a digitally programmed drive that can be programmed either locally or remotely from the front-mounted control panel, or through the use of a handheld terminal. In addition, the 1336-B003-EAD-FA2-L3 can be programmed from the external PLC programmable controllers. The 1336-B003-EAD-FA2-L3 is UL listed.

The 1336-B003-EAD-FA2-L3 contains 3.9 KVA at 380 Volts AC, 4.3 KVA at 415 Volts, and 4.8 KVA at 460 Volts AC. the 1336-B003-EAD-FA2-L3 also features the NEMA Type 1 IP20 enclosure that comes with an enclosure rating of 005, 003, 007, or 010. The 1336-B003-EAD-FA2-L3 features a voltage of 380/415/460 Volts with a frequency rating of 50 to 60 Hertz. The 1336-B003-EAD-FA2-L3 comes with various contact outputs that come available as standard features. There is the “run” contact output that is usually closed when the drive is running and the “at speed” contact that remains closed when the 1336-B003-EAD-FA2-L3 has been set to the command speed. The fault contact output illustrates a change of state on a drive fault or a loss of power. The drive also comes with the drive alarm that is a feature that indicates if the drive is operating outside of the rated current. An incorrectly installed 1336-B003-EAD-FA2-L3 drive might result in component damage or in a possible reduction of the product life.
