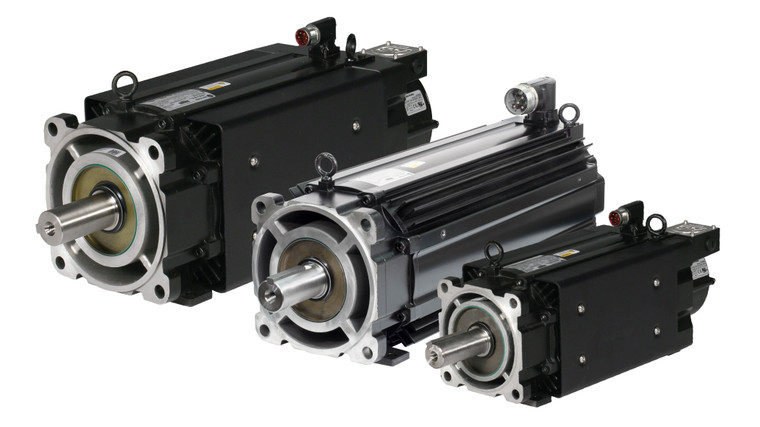

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
Revisions: Ser A
Description: The 1326AB-B730E-21MK7L servo motor is an AC-powered servo motor with a metric flange and a holding brake. It has been manufactured by Allen-Bradley/Rockwell Automation within the Bulletin 1326 series.The 1326AB-B730E-21MK7L servo motor’s metric flange has a keyway built into it and it is an IEC type of metric flange. Additionally, the motor’s holding brake uses a 24 Volts DC rated coil and its torque rating is 140 pounds on an inch or 41 N-m. The 1326AB-B730E-21MK7L servo motor can operate at 3350 RPM of speed with 460 Volts AC motor voltage.
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1326AB-B730E-21MK7L Used Surplus
Allen Bradley
Revisions: Ser A
Description: The 1326AB-B730E-21MK7L servo motor is an AC-powered servo motor with a metric flange and a holding brake. It has been manufactured by Allen-Bradley/Rockwell Automation within the Bulletin 1326 series.The 1326AB-B730E-21MK7L servo motor’s metric flange has a keyway built into it and it is an IEC type of metric flange. Additionally, the motor’s holding brake uses a 24 Volts DC rated coil and its torque rating is 140 pounds on an inch or 41 N-m. The 1326AB-B730E-21MK7L servo motor can operate at 3350 RPM of speed with 460 Volts AC motor voltage.
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1326AB-B730E-21MK7L
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1326AB-B730E-21MK7L |
| Product Type | Servo Motor |
| Voltage | 460/380V AC |
| Frame Diameter | 194 mm |
| Rated Motor Speed | 3350 rpm |
| Flange and Shaft Series | IEC Metric Flange with Keyway |
| Motor Rated Torque | 39 Nm |
| Motor Rated Output | 9.6 kW |
| System Continuous Torque | 39 Nm |
| System Peak Stall Torque | 85.4 Nm |
| Standard Option | 41 Nm Holding Brake w/ 24V DC Coil |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326AB-B730E-21MK7L has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326AB-B730E-21MK7L units instead of migration.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1326AB-B730E-21MK7L |
| Product Type | Servo Motor |
| Voltage | 460/380V AC |
| Frame Diameter | 194 mm |
| Rated Motor Speed | 3350 rpm |
| Flange and Shaft Series | IEC Metric Flange with Keyway |
| Motor Rated Torque | 39 Nm |
| Motor Rated Output | 9.6 kW |
| System Continuous Torque | 39 Nm |
| System Peak Stall Torque | 85.4 Nm |
| Standard Option | 41 Nm Holding Brake w/ 24V DC Coil |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326AB-B730E-21MK7L has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326AB-B730E-21MK7L units instead of migration.
sAbout 1326AB-B730E-21MK7L
The 1326AB-B730E-21MK7L is a servo motor from Allen-Bradley/Rockwell Automation and it belongs to the 1326AB series of servo motors. The motor operates at an average voltage of 380 to 460 Volts AC. The 1326AB-B730E-21MK7L has a multi-turn high-resolution feedback device, a 41 N-m and a 24 Volts DC coil used with the holding brake. Additionally, the servo motor should be operated in environments that are IP67-rated. The “6” in “IP67” shows that the motor is protected from dust while the “7” indicates that the 1326AB-B730E-21MK7L is guarded against the damaging effects that may be caused by the motor being immersed in water in depths ranging from 15 centimeters to 1 meter. The IP67 specifications lose effect when an external junction box or an encoder is used.
The 1326AB-B730E-21MK7L, as with other servo motors with the B7 frame, uses the M12 bolt size, a 1.75-millimeter pitch, and a flange thickness of 20.60 millimeters and a screw length not exceeding 40 millimeters. The 1326AB-B730E-21MK7L is part of the three-phase AC high-performance servo motors product line manufactured by Allen-Bradley to be used with the 1394 motion control systems from Rockwell Automation. The multi-turn feature of the 1326AB-B730E-21MK7L prevents the machine from re-homing on every power-up by ensuring that machine positions (absolute) are provided over multiple revolutions without the need of a battery. The 1326AB-B730E-21MK7L AC servo motor has a rated speed of 3350 RPM at 460 Volts AC and 2800 RPM at 380 Volts AC and at 9.6 kilowatts of output power. When used with the 1394 system, an external encoder is eliminated since the A Quad B feedback output can be driven by the 1394 servo system directly from the motor feedback. The 1326AB-B730E-21MK7L has a rotor inertia of 0.024 kg-m2, a system continuous torque of 39.0 N-m, and a system peak stall torque of 56.8 N-m. Additionally, the 1326AB-B730E-21MK7L has a current (system continuous stall) of 22.8 Amps and a peak stall current (system) of 33.2 Amps.
Technical Description of 1326AB-B730E-21MK7L
The Allen-Bradley 1326AB-B730E-21MK7L has a 460/380V AC Voltage, a 194 mm Frame Diameter, and a 3350 rpm Rated Motor Speed. It also contains a 39 Nm System Continuous Torque and a 9.6 kW Motor Rated Output.
