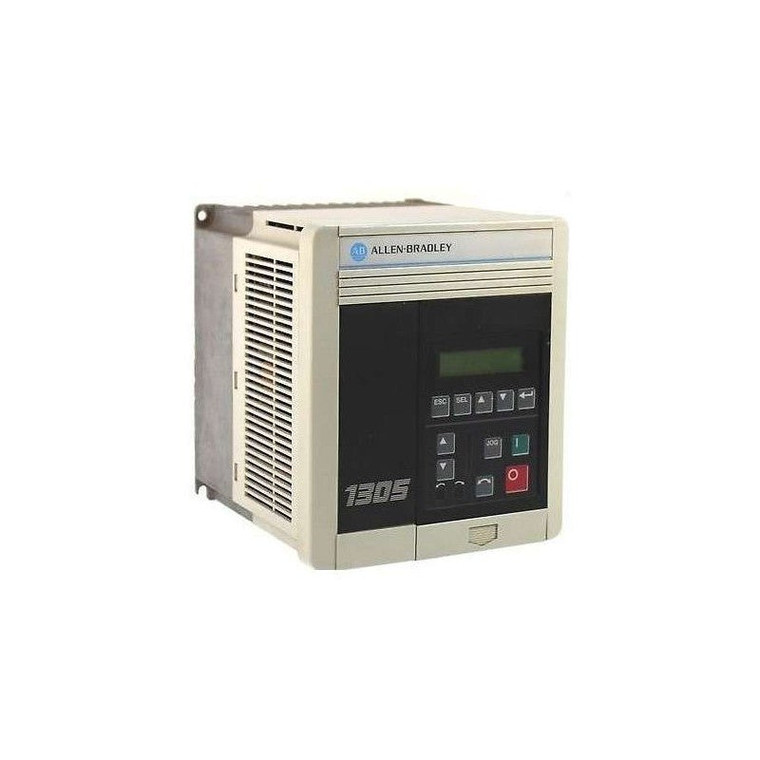

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1305BA01AHAP
- DISCONTINUED BY MANUFACTURER
- AC DRIVE
- 1305 SERIES
- 3 PHASE
- 380-460 VAC
- 50/60 HZ
- 0.37 KW (0.5 HP)
- 1.3 AMPS
- IP 30 (NEMA TYPE 1)
- HIM PROGRAMMER ONLY
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1305-BA01A-HAP Used Surplus
Allen Bradley - 1305BA01AHAP
- DISCONTINUED BY MANUFACTURER
- AC DRIVE
- 1305 SERIES
- 3 PHASE
- 380-460 VAC
- 50/60 HZ
- 0.37 KW (0.5 HP)
- 1.3 AMPS
- IP 30 (NEMA TYPE 1)
- HIM PROGRAMMER ONLY
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1305-BA01A-HAP
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1305-BA01A-HAP |
| Product Line | 1305 AC Drives |
| Enclosure Type | IP 30 (NEMA Type 1) |
| Voltage | 380-460V, Three Phase |
| Human Interface Modules | Programmer Only |
| Language | English |
| Horsepower | 0.5 HP |
| Motor Rating (kW, Output Current) | .37 kW 1.3 A |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1305-BA01A-HAP has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1305-BA01A-HAP units instead of migration.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1305-BA01A-HAP |
| Product Line | 1305 AC Drives |
| Enclosure Type | IP 30 (NEMA Type 1) |
| Voltage | 380-460V, Three Phase |
| Human Interface Modules | Programmer Only |
| Language | English |
| Horsepower | 0.5 HP |
| Motor Rating (kW, Output Current) | .37 kW 1.3 A |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1305-BA01A-HAP has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1305-BA01A-HAP units instead of migration.
sAbout 1305-BA01A-HAP
The Allen-Bradley 1305-BA01A-HAP is a product in the Bulletin 1305 AC Drive series. The catalog number indicates the unique features of the drives. “1305” indicates the bulletin number. “B” indicates the input voltage, which is 380-460V AC. “A01” identifies the nominal current rating. “A” indicates that this device uses the NEMA Type 1 (IP30) enclosure. The fifth position is for the language code, this type of device does not have a language code, therefore, it uses the default language which is the English language. “HAP” identifies the type of Human Interface Module (HIM) the device uses. The HIM features a backlit LCD display and computer-like programming keys. It can also be removed from the 1305-BA01A-HAP drive.
The 1305-BA01A-HAP can withstand 1G of vibrations. It does not offer special cooling equipment but uses natural convection as its cooling method. The atmospheric temperature ranges between 0 and 50° C with the enclosure and between 0 and 40° C without one. The storage temperature ranges from -40-70° C, at 0-95% relative humidity (non-condensing). Use the 1305 Dynamic Brake Kits for additional AC Dynamic Braking Torque with an output of 150% with an external resistor and of 100% without an external resistor. The 1305-BA01A-HAP measures 170mm x 195mm x 179mm in overall dimensions and it weighs approximately 3.6 kg (8lb).
The 3-phase AC induction motor for this design uses 0.37kW (0.5HP) and it has an output current of 1.3A. It has an adjustable output voltage between 0V and the desired input voltage, a programmable output frequency from 0-400Hz, and a maximum of 250mA ScanPort load i.e. if all adapters are combined. The voltage is operational in a range between 340 and 500V, 47 and 63Hz with an input kVA of 0.9. The 1305-BA01A-HAP has 97.5% efficiency rating and a displacement of 0.8 (lagging) and with 21W power dissipation.
Technical Description of 1305-BA01A-HAP
1305-BA01A-HAP 1305 AC Drives with IP 30 (NEMA Type 1) enclosure, 380-460V, Three Phase rating and Programmer Only interface. English language
