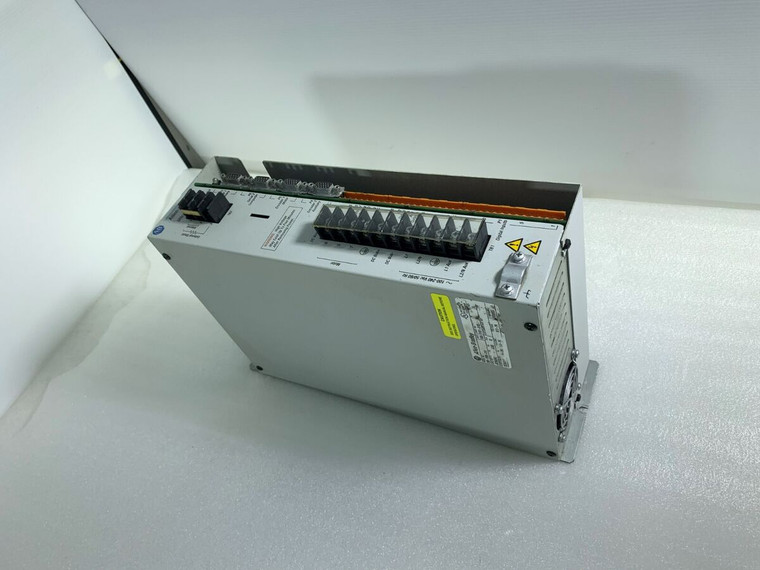

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1398PDM010
- DISCONTINUED BY MANUFACTURER 7/30/10
- SERVO DRIVE
- 1 PHASE
- 120/240 VAC 50/60 HZ
- ULTRA PLUS POSITIONING SERVO DRIVE
- PEAK OUTPUT CURRENT/PHASE: 10 AMP
- CONTINUOUS OUTPUT CURRENT/PHASE: 5 AMP
- CONTINUOUS OUTPUT POWER: 1 KW
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1398-PDM-010
Allen Bradley- 1398PDM010
- DISCONTINUED BY MANUFACTURER 7/30/10
- SERVO DRIVE
- 1 PHASE
- 120/240 VAC 50/60 HZ
- ULTRA PLUS POSITIONING SERVO DRIVE
- PEAK OUTPUT CURRENT/PHASE: 10 AMP
- CONTINUOUS OUTPUT CURRENT/PHASE: 5 AMP
- CONTINUOUS OUTPUT POWER: 1 KW
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
Technical Specifications for 1398-PDM-010
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Weight | 15 pounds (5 kilograms) |
Continuous Output Power | 1 kWatt |
Operating Temperature | 32-140 degrees Fahrenheit (0-50 degrees Celsius) |
Continuous Shunt Power | 50 Watts |
Peak Shunt Power | 4.5 kWatts |
Peak Output Current | 10 Amps/Phase |
Part Number/Catalog No. | 1398-PDM-010 |
Continuous Output Current | 5 Amps/Phase |
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Weight | 15 pounds (5 kilograms) |
Continuous Output Power | 1 kWatt |
Operating Temperature | 32-140 degrees Fahrenheit (0-50 degrees Celsius) |
Continuous Shunt Power | 50 Watts |
Peak Shunt Power | 4.5 kWatts |
Peak Output Current | 10 Amps/Phase |
Part Number/Catalog No. | 1398-PDM-010 |
Continuous Output Current | 5 Amps/Phase |
About 1398-PDM-010
The 1398-PDM-010 drive is an Ultra Plus drive from Allen-Bradley. The Ultra Plus drive family is a drive family which provides drives with high-performance positioners and a brushless drive in 1 unit. The 1398-PDM-010 drive is a microprocessor-based drive which uses an 80C196KC microprocessor clocked at 20 Megahertz. The hardware watchdog rating is 0.016 seconds. Feedback is provided through an incremental encoder. The input frequency for the encoder is 750 kilohertz. The maximum pulse input frequency is 800 kilohertz.
The analog I/O on the 1398-PDM-010 drive includes one 12-bit DAC output, one 8-bit DAC programmable monitor input, and one 10-bit ADC input. Digital I/O on the drive include 16 general-purpose inputs, 8 general-purpose outputs, and 2 dedicated normally-open relays. The continuous output power for the 1398-PDM-010 drive is 1 kilowatt. The continuous and peak output current per phase for the drive are 5 Amps and 10 Amps, respectively. The drive operates on single-phase input at 115 to 240 Volts AC. The internal continuous shunt power dissipation is 50 Watts of peak shunt power is 4.5 kilowatts which can go up to 6 kilowatts with an optional internal resistor. The weight of the 1398-PDM-010 drive is 11 pounds. The working temperature range is from 32 to 122 degrees Fahrenheit. The 1398-PDM-010 measures 349.3 x 111.8 x 226.8 millimeters.
