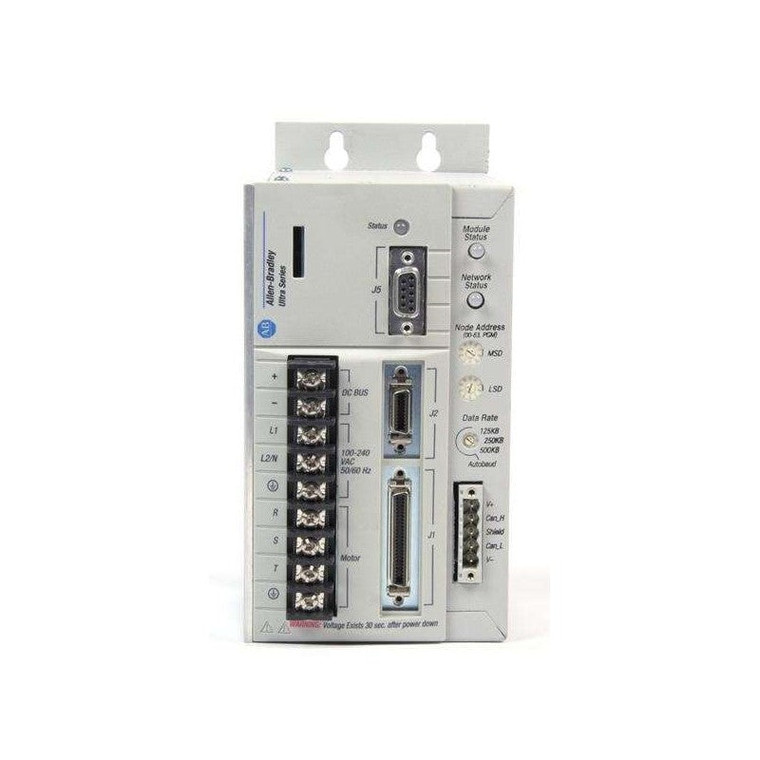

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.

Allen Bradley 1398-DDM-009-DN
  • 1398DDM009DN
  • DISCONTINUED BY MANUFACTURER 2012-03-05
  • UNIVERSAL DRIVE
  • ULTRA 100
  • 1000 WATT
  • SINGLE PHASE
  • 110/240 VAC @ 50/60 HZ
  • SERVO DRIVE
  • 1.5 HP
  • 1 KW
  • 15 AMP
  • 100-240 VAC
  • 1 PHASE
  • ELECTRO CRAFT
  • RELIANCE ELECTRIC
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.

Allen Bradley 1398-DDM-009-DN
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.

Allen Bradley 1398-DDM-009-DN

Allen Bradley
Part
#1398-DDM-009-DN
Condition:
New
3 in stock
$2,909.00
Adding to cart… The item has been added
  • 1398DDM009DN
  • DISCONTINUED BY MANUFACTURER 2012-03-05
  • UNIVERSAL DRIVE
  • ULTRA 100
  • 1000 WATT
  • SINGLE PHASE
  • 110/240 VAC @ 50/60 HZ
  • SERVO DRIVE
  • 1.5 HP
  • 1 KW
  • 15 AMP
  • 100-240 VAC
  • 1 PHASE
  • ELECTRO CRAFT
  • RELIANCE ELECTRIC
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

QUICK DELIVERY

FREE SHIPPING

1 YEAR WARRANTY

EASY RETURNS

Questions?

Speak with a real person who will go out of the way to help!

Call

833 839 6483

 Mail

sales@texnite.com
Start

Chat

Reviews

Description

    Technical Specifications for 1398-DDM-009-DN

ManufacturerRockwell Automation
BrandAllen-Bradley
Weight4.8 lbs (2.15 kg)
Dimensions7.9 x 3.9 x 5.8 in (200 x 100 x 150 mm)
Operating Temperature32-131 F (0-55 C)
Continuous Power Output120 Vac 0.6 kWatts; 240 Vac 1.2 kWatts
Peak Power Output120 Vac 1.3 kWatts; 240 Vac 2.7 kWatts
Output Peak Current15 amps
Bus Voltage141-339 Volts (DC)
AC Input Current9 amps rms
AC Input Voltage100-240 Vac rms Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.1398-DDM-009-DN
ManufacturerRockwell Automation
BrandAllen-Bradley
Weight4.8 lbs (2.15 kg)
Dimensions7.9 x 3.9 x 5.8 in (200 x 100 x 150 mm)
Operating Temperature32-131 F (0-55 C)
Continuous Power Output120 Vac 0.6 kWatts; 240 Vac 1.2 kWatts
Peak Power Output120 Vac 1.3 kWatts; 240 Vac 2.7 kWatts
Output Peak Current15 amps
Bus Voltage141-339 Volts (DC)
AC Input Current9 amps rms
AC Input Voltage100-240 Vac rms Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.1398-DDM-009-DN
s

About 1398-DDM-009-DN

The Allen-Bradley 1398-DDM-009-DN Servo Drive weighs 8 lbs. and measures 7.9 x 3.9 x 5.8 inches. The 1398-DDM-009-DN is part of Allen-Bradley’s Ultra 100 series of servo drives. It can function at an ambient temperature range of 32-131 oF. Its nominal AC input voltage is 100-240V AC single-phase Root Means Square (RMS).  Its AC input current is 9 A RMS at 47-63 Hz.





The 1398-DDM-009-DN’s continuous power output is 0.6 kW at 120V AC and 1.2 kW at 240V AC, its peak power output is 1.3 kW at 120V AC and 2.7 kW at 240V AC, and its peak power output 15 A. The 1398-DDM-009-DN’s Bus voltage is 141-339V DC.





Always inspect your 1398-DDM-009-DN servo drive for damage and test all its functions after it arrives.





The 1398-DDM-009-DN uses the DeviceNet network to communicate. It connects to the network through its DeviceNet connector and interface. When connecting the 1398-DDM-009-DN to the DeviceNet network, take note of the network data rate, the topology of cable system you are connecting the 1398-DDM-009-DN to, the distances between the cable system’s components, and the limitations to the trunk and drop cables that you are using.
