The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.

  • 1336BDBSP55C
  • DISCONTINUED BY MANUFACTURER
  • PC BOARD GATE DRIVE 575V/650HP
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.

Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.

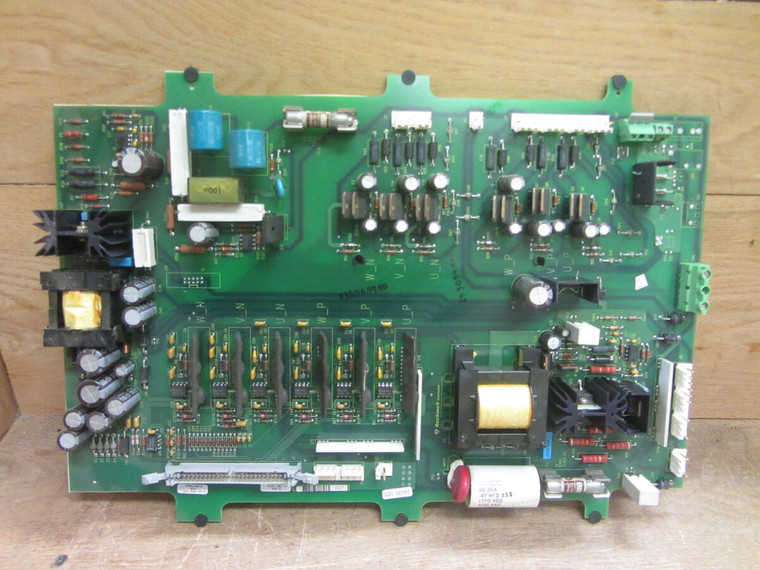

Allen Bradley 1336-BDB-SP55C Used Surplus

Allen Bradley
Part
#1336-BDB-SP55C
1 in stock
$4,022.00
Adding to cart… The item has been added
  • 1336BDBSP55C
  • DISCONTINUED BY MANUFACTURER
  • PC BOARD GATE DRIVE 575V/650HP
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

QUICK DELIVERY

FREE SHIPPING

1 YEAR WARRANTY

EASY RETURNS

Questions?

Speak with a real person who will go out of the way to help!

Start

Chat

Reviews

    Technical Specifications for 1336-BDB-SP55C

BrandAllen-Bradley / Rockwell Automation
Series1336 PCB Boards
Part Number1336-BDB-SP55C
Product typeGate driver PCB
Horsepower25 Horsepower
Voltage 460 Volts AC
Drive Compatibility1336 FORCE / IMPACT / PLUS II / PLUS
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-BDB-SP55C has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-BDB-SP55C units instead of migration.

BrandAllen-Bradley / Rockwell Automation
Series1336 PCB Boards
Part Number1336-BDB-SP55C
Product typeGate driver PCB
Horsepower25 Horsepower
Voltage 460 Volts AC
Drive Compatibility1336 FORCE / IMPACT / PLUS II / PLUS
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-BDB-SP55C has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-BDB-SP55C units instead of migration.

s

About 1336-BDB-SP55C

The Allen-Bradley 1336-BDB-SP55C board kit is a kit that contains a gate drive board kit that can be used to replace a faulty gate drive board in 1336 PLUS, IMPACT, FORCE, and PLUS II series adjustable frequency drives. The 1336-BDB-SP55C board kit works with AC drives that are rated for 460 Volts AC input voltage and 25 Horsepower output power. For Series C and later drives, it works with the 1336 PLUS, FORCE, and IMPACT series drives. For Series A and later drives, it works with the 1336 PLUS II series drives. The 1336-BDB-SP55C board kit is compatible with Frame B drives. Gate drive boards like the 1336-BDB-SP55C board kit accept a low power input level and produce high current at the output. The output from the board is applied to an IGBT brake or a power MOSFET transistor.







A major cause of failure for solid-state drives such as Allen-Bradley 1336 drives is ESD or electrostatic discharge. Precautions should be implemented while working with drives containing ESD-sensitive parts. The most important ESD precaution is the use of grounded wrist-straps during drive repair and maintenance processes. Additionally, the surface of the workbench that is being used should be grounded. The floor of the work area should also be covered with a grounded conductive material. The technicians should ground themselves prior to touching the drive components. During module replacement, the faulty module should be kept in a static shielded container after removal from the drive. The new 1336-BDB-SP55C module should be removed from its static shielded package at a static-safe work area. Correct handling procedures should be used for module handling to prevent damage to the sensitive components.
