Speak with a real person who will go out of the way to help!

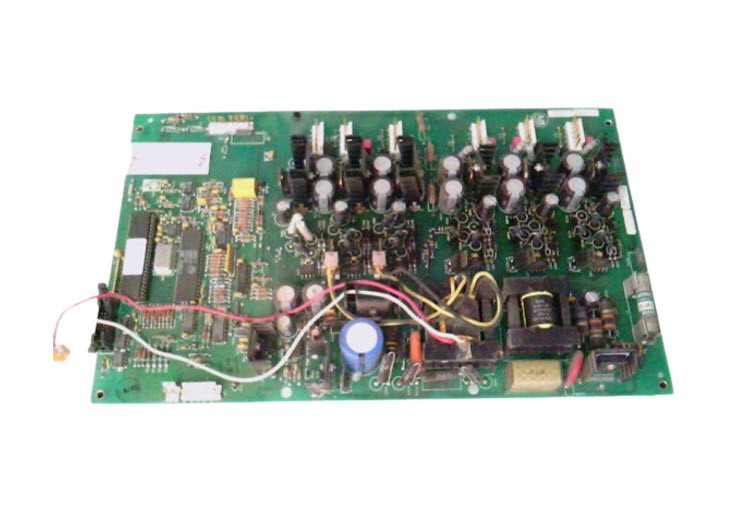

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1336151141
- DISCONTINUED BY MANUFACTURER
- PC BOARD BASE
- FOR AC DRIVE
- DR P/S
- 75 HP
- 460 VAC
- PCB BOARD ASSEMBY
- SAME-AS:151141
- SAME-AS: SP-151141
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1336-151141
Allen Bradley- 1336151141
- DISCONTINUED BY MANUFACTURER
- PC BOARD BASE
- FOR AC DRIVE
- DR P/S
- 75 HP
- 460 VAC
- PCB BOARD ASSEMBY
- SAME-AS:151141
- SAME-AS: SP-151141
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1336-151141
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1336-151141 |
Description | Base Drive Power Suppler |
Rating Code | B075 |
Quantity Used Per Drive | 1 |
Kit Number | SP-151141 |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-151141 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-151141 units instead of migration.
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1336-151141 |
Description | Base Drive Power Suppler |
Rating Code | B075 |
Quantity Used Per Drive | 1 |
Kit Number | SP-151141 |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-151141 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-151141 units instead of migration.
sAbout 1336-151141
The 1336-151141 is a base drive power supply that is made by Allen-Bradley. Only one unit can be used on a drive. It has a PC board driver which has 75HP and 460V. It has in it braking resistors which increase the capability of the braking torque to higher levels. The 1336-151141 also has a power resistor which changes electrical energy to thermal energy. The protective fuses that it contains works together with the crowbar to sense circuitry and to determine whether conditions that are not normal exist within transistors. The transistors in this base drive power supply are Insulated Gate Bipolar Transistors (IGBT).
The 1336-151141 also has a means of voltage control. It has voltage dividers that function to minimize DC Bus voltage to values that can be used in controlling the signal circuit isolation. It also has an FWD which supports and allows magnetic energy contained in parasitic inductance to be dissipated safely when a transistor is turned off. The 1336-151141 also has 2 lights on the front part of the enclosure to show operation. The DC power lights are used when this operation has been applied to the module. The “Brake On” light, on the other hand, flicks on when the chopper module is in operation.
The operating temperature of the 1336-151141 power supply is -10°C to 50°C. It is also supposed to be kept in a non – corrosive atmosphere with a humidity of 5 to 95% non–condensing. When working on this product, users are advised to remove all the power first to avoid being electrocuted. This product has a thermostat that works to protect it from overheating and subsequently being damaged. It does this by tripping and disabling the brake module till it cools. The brake resistor and brake power wiring contained in this product should be twisted and should run separately from the wire used for controlled wiring.
