Allen Bradley 1336-BDB-SP5C Used Surplus

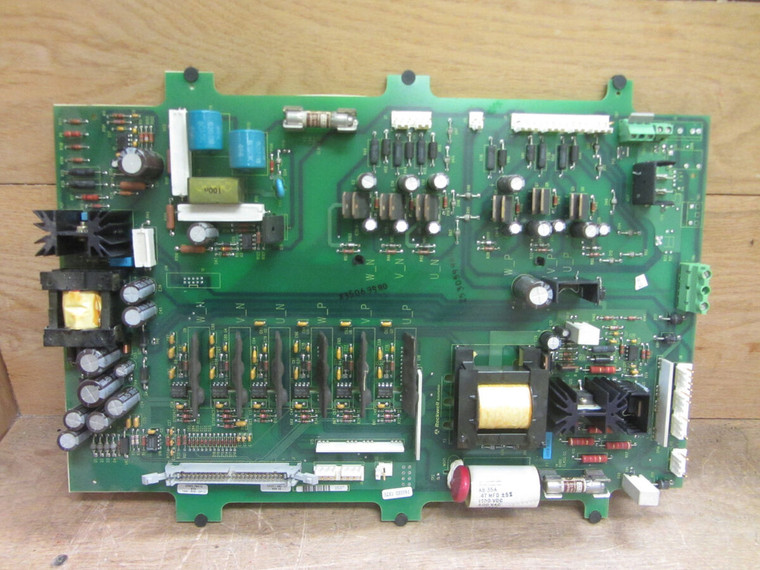

The 1336-BDB-SP5C board is a spare part board for the Allen-Bradley 1336 adjustable frequency AC drives, and the spare part board has also been manufactured by Allen-Bradley. A gate drive board like this one can be used as a power amplifying device. It accepts low voltage input and amplifies the supply voltage as needed by the different components of the drive. The board is connected with the main control board of the drive by using the connector on the board. The board is manufactured using high-quality materials that have a long life. The 1336-BDB-SP5C board is compact in size and it can be easily transported across industry floors. It has no water-resistant settings and it should be protected from liquid sprays and splashes. The gate drive board is comprised of different components and it is sensitive in nature. It should be protected against electrostatic discharge in the installation area.

The 1336-BDB-SP5C board is manufactured with a voltage rating of 460 Volts AC. The board can be mounted on the front panel of the drive. The variable frequency drive should be fully disconnected from power before replacing the board. The maximum power output of the gate drive board is 25 Horsepower. It is a Series C module and it is fully compatible with the Allen-Bradley Force series variable frequency drives (VFDs). The environmental temperature should not exceed a maximum of 50 degrees celsius for the proper functioning of the board. The 1336-BDB-SP5C board is certified with modern industrial and environmental standards including the CE, CSA, and UL. standards It also meets all the specifications that are required to meet the EMC standard. The 1336 drives are known to be very efficient in speed control and torque regulation.
