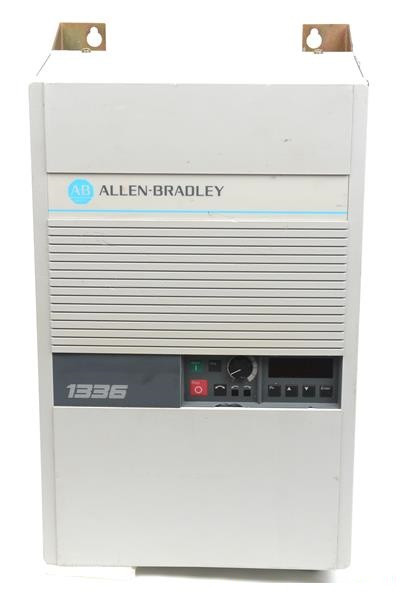

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.

  • 1336B010EADFA2L3S1
  • DISCONTINUED BY MANUFACTURER
  • AC DRIVE
  • 1336 ADJUSTABLE FREQUENCY
  • 460 VAC
  • 50/60 HZ
  • 10 HP
  • 17.0 AMP
  • IP20 / NEMA 1 ENCLOSURE
  • 115V AC LOGIC INTERFACE BOARD
  • SERIAL PORT CONNECTOR
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.

Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.

Allen Bradley 1336-B010-EAD-FA2-L3-S1 Used Surplus

Allen Bradley
Part
#1336-B010-EAD-FA2-L3-S1
Condition:
Used
10 in stock
$1,748.00
Adding to cart… The item has been added
  • 1336B010EADFA2L3S1
  • DISCONTINUED BY MANUFACTURER
  • AC DRIVE
  • 1336 ADJUSTABLE FREQUENCY
  • 460 VAC
  • 50/60 HZ
  • 10 HP
  • 17.0 AMP
  • IP20 / NEMA 1 ENCLOSURE
  • 115V AC LOGIC INTERFACE BOARD
  • SERIAL PORT CONNECTOR
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

QUICK DELIVERY

FREE SHIPPING

1 YEAR WARRANTY

EASY RETURNS

Questions?

Speak with a real person who will go out of the way to help!

Start

Chat

Reviews

    Technical Specifications for 1336-B010-EAD-FA2-L3-S1

BrandAllen-Bradley / Rockwell Automation
Series1336 Adjustable
Part Number1336-B010-EAD-FA2-L3-S1
BrandAllen-Bradley/Rockwell Automation
Series1336 Adjustable
Part Number1336-B010-EAD-FA2-L3-S1
Product Type Adjustable Frequency AC Drive
Voltage380/415/460 Volts AC
Frequency50/60 Hertz
Phase3
Amperage17 Amperes
EnclosureIP20 NEMA Type 1
Option115 V AC Logic Interface Board.
OptionSerial Port Connector
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-B010-EAD-FA2-L3-S1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B010-EAD-FA2-L3-S1 units instead of migration.

BrandAllen-Bradley / Rockwell Automation
Series1336 Adjustable
Part Number1336-B010-EAD-FA2-L3-S1
BrandAllen-Bradley/Rockwell Automation
Series1336 Adjustable
Part Number1336-B010-EAD-FA2-L3-S1
Product Type Adjustable Frequency AC Drive
Voltage380/415/460 Volts AC
Frequency50/60 Hertz
Phase3
Amperage17 Amperes
EnclosureIP20 NEMA Type 1
Option115 V AC Logic Interface Board.
OptionSerial Port Connector
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-B010-EAD-FA2-L3-S1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B010-EAD-FA2-L3-S1 units instead of migration.

s

About 1336-B010-EAD-FA2-L3-S1

The 1336-B010-EAD-FA2-L3-S1 variable frequency drive is a product of Allen-Bradley/Rockwell Automation featuring a factory-installed basic control panel with NEMA Type 1 or open enclosure ratings. In addition to the basic control panel, this drive has a logic interface board rated at 115 Volts AC and a serial port connector option. The drive’s interface board can be connected to the main control board by using J8 and J9 jumpers, thus increasing the configurations of the control wiring for the 1336-B010-EAD-FA2-L3-S1 drive. This drive uses both male and female jumpers to complete the circuit between 2 different pins. The drive also features a set of options that help with the input of information into the controller, which is then used to set the parameter values. Also, the drive’s options can help in changing the settings of the selector switch.







Troubleshooting of the Allen-Bradley 1336-B010-EAD-FA2-L3-S1 variable frequency drive with other 1336 AC drives can only be done by the use of Range DMM, VOM, or DVM with a capacity of not less than 1000 Volts, an oscilloscope frequency response range of not less than 1 Megahertz, or by the use of the 1336-MOD-E1 hand-held terminal. The drive also features a programming panel, standard local display, and SW1 switch which helps in enabling or disabling the ‘ENTER’ pushbutton and it controls the process of drive programming. Also, the 1336-B010-EAD-FA2-L3-S1 drive can be interfaced by using an optional local control panel that enhances the configuration of the jog, start, and stop functions. When purchasing the 1336-B010-EAD-FA2-L3-S1 drive and the optional panel or interface is not specified in the order, its place will be covered using a blank plate on the drive. The drive comes with a standard display panel or interface that can be used to display error codes to enhance the troubleshooting process.
