Revisions: Ser AÂ
Description: The Allen-Bradley 1336-B007-EOD drive is a Bulletin 1336 series adjustable frequency drive that is manufactured for controlling industrial motors. Its 3-phase voltage ratings are 380, 415, and 460 Volts AC at a frequency of 50 to 60 Hertz. The 1336-B007-EOD adjustable frequency drive has an IP 00 protection rating and it can only be used indoors. Its overvoltage trip rating is 810 Volts and its undervoltage trip rating is 388 Volts. The ambient operating temperature range for the 1336-B007-EOD adjustable frequency drive is from 0 to 40 degrees Celsius.
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.

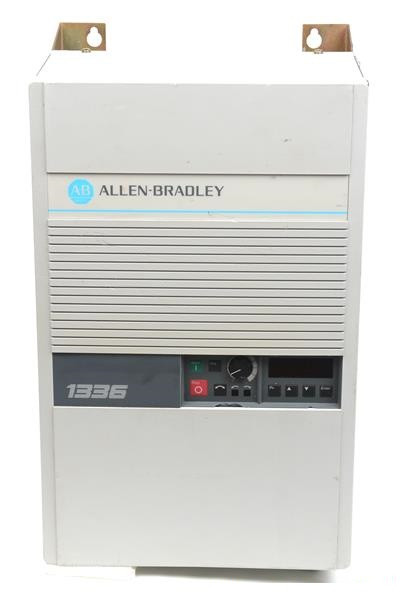

Allen Bradley 1336-B007-EOD Used Surplus
Allen Bradley
Revisions: Ser AÂ
Description: The Allen-Bradley 1336-B007-EOD drive is a Bulletin 1336 series adjustable frequency drive that is manufactured for controlling industrial motors. Its 3-phase voltage ratings are 380, 415, and 460 Volts AC at a frequency of 50 to 60 Hertz. The 1336-B007-EOD adjustable frequency drive has an IP 00 protection rating and it can only be used indoors. Its overvoltage trip rating is 810 Volts and its undervoltage trip rating is 388 Volts. The ambient operating temperature range for the 1336-B007-EOD adjustable frequency drive is from 0 to 40 degrees Celsius.
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
Technical Specifications for 1336-B007-EOD
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B007-E0D |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hz | 50/60 |
| Phases | 3 |
| Amps Out | 13 |
| KVA Out @ 380V AC | 8.6 |
| KVA Out @ 415V AC | 9.3 |
| KVA Out at 460V AC | 10.4 |
| Enclosure Type | Open style (IP00) |
| Enclosure Amp Rating | 003, 005, 007, or 010 |
| Bulletin | 1336 |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B007-EOD has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B007-EOD units instead of migration.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B007-E0D |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hz | 50/60 |
| Phases | 3 |
| Amps Out | 13 |
| KVA Out @ 380V AC | 8.6 |
| KVA Out @ 415V AC | 9.3 |
| KVA Out at 460V AC | 10.4 |
| Enclosure Type | Open style (IP00) |
| Enclosure Amp Rating | 003, 005, 007, or 010 |
| Bulletin | 1336 |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B007-EOD has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B007-EOD units instead of migration.
sAbout 1336-B007-EOD
Manufactured by Allen-Bradley/Rockwell Automation, the 1336-B007-EOD drive is a variable frequency drive and part of the 1336 series of adjustable frequency drives. It has an input voltage rating of 380, 415, and 460 volts AC, with 13 Amps of output voltage. The drive has a power output of 8.6 Watts at 380 Volts AC, with a frequency of 50 to 60 Hertz and 3 phases. This drive also features an open IP 00 type of enclosure. The Allen-Bradley 1336-B007-EOD adjustable frequency AC drive is microcontroller-based. It is designed to help with the control of induction motors via the 3-phase PWM variable frequency output. This drive can be digitally programmed from the remote or local panel connected on the drive’s serial communication ports. It is meant for operation in an environment with an ambient temperature range of 0 to 40 degrees Celsius. It also works well in relative humidity range between 5 and 95%, non-condensing.
This Allen-Bradley 1336-B007-EOD variable frequency drive has a bus overvoltage trip limit of 810 Volts AC, and an under-voltage trip limit is 388 Volts DC. During the replacement process, it is essential to ensure that the bus has no voltage to prevent the risk of electric shock. The power is supposed to be turned off and the bus capacitors discharged to get rid of the voltage. Note that the capacitors could retain some voltage even the drive power has been turned off. When operating the 1336-B007-EOD adjustable frequency drive, observe all the relevant safety rules and guidelines. The electrostatic discharge must be prevented because the modules are sensitive to it.
Technical Description of 1336-B007-EOD
The Allen-Bradley 1336-B007-E0D Adjustable Frequency AC Drive operates with a 380/415/460V A Input Voltage, 50/60 Hz, and 3 Phases. The 1336-B007-EOD has 13 Amps Out and a Open style (IP00) Enclosure Type.
