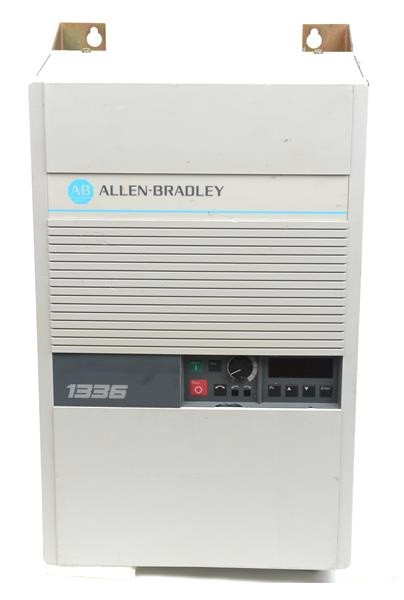

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1336B007EADFA2L3S1
- DISCONTINUED BY MANUFACTURER
- AC DRIVE
- 1336 ADJUSTABLE FREQUENCY
- 460 VAC
- 50/60 HZ
- 5.6 KW / 7.5 HP
- 13.0 AMP
- IP20 / NEMA 1 ENCLOSURE
- BASIC CONTROL PANEL FOR OPEN OR NEMA 1 ENCLOSURES
- 115V AC LOGIC INTERFACE BOARD
- SERIAL PORT CONNECTOR
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1336-B007-EAD-FA2-L3-S1 Used Surplus
Allen Bradley- 1336B007EADFA2L3S1
- DISCONTINUED BY MANUFACTURER
- AC DRIVE
- 1336 ADJUSTABLE FREQUENCY
- 460 VAC
- 50/60 HZ
- 5.6 KW / 7.5 HP
- 13.0 AMP
- IP20 / NEMA 1 ENCLOSURE
- BASIC CONTROL PANEL FOR OPEN OR NEMA 1 ENCLOSURES
- 115V AC LOGIC INTERFACE BOARD
- SERIAL PORT CONNECTOR
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1336-B007-EAD-FA2-L3-S1
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1336-B007-EAD-FA2-L3-S1 |
Product Type | Adjustable Frequency AC Drive |
Input Voltage | 380/415/460V AC |
Hz | 50/60 |
Phases | 3 |
Amps Out | 13 |
KVA Out @ 380V AC | 8.6 |
KVA Out @ 415V AC | 9.3 |
KVA Out at 460V AC | 10.4 |
Enclosure Type | NEMA Type 1 (IP20) |
Enclosure Amp Rating | 003, 005, 007, or 010 |
Bulletin | 1336 |
Option | 115 V AC Logic Interface Board. |
Option | Basic control panel for open or NEMA Type 1 enclosures |
Option | Serial Port connector |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B007-EAD-FA2-L3-S1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B007-EAD-FA2-L3-S1 units instead of migration.
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1336-B007-EAD-FA2-L3-S1 |
Product Type | Adjustable Frequency AC Drive |
Input Voltage | 380/415/460V AC |
Hz | 50/60 |
Phases | 3 |
Amps Out | 13 |
KVA Out @ 380V AC | 8.6 |
KVA Out @ 415V AC | 9.3 |
KVA Out at 460V AC | 10.4 |
Enclosure Type | NEMA Type 1 (IP20) |
Enclosure Amp Rating | 003, 005, 007, or 010 |
Bulletin | 1336 |
Option | 115 V AC Logic Interface Board. |
Option | Basic control panel for open or NEMA Type 1 enclosures |
Option | Serial Port connector |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B007-EAD-FA2-L3-S1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B007-EAD-FA2-L3-S1 units instead of migration.
sAbout 1336-B007-EAD-FA2-L3-S1
The Allen-Bradley 1336-B007-EAD-FA2-L3-S1 is a 1336 series Adjustable Frequency AC drive with three advanced features. This AC drive will work with 380 to 460 Volts AC three-phase voltages applied at its input terminals. It is used to provide sophisticated three-phase motor control to 9 kW rated motors. It can implement DC power boosts for the kickstart starting option. It is easily controlled over its integrated HMI. It exchanges signals over a 115 Volts AC Logic Interface and it has a built-in Serial Port connector. Various status and fault conditions can be transferred over this serial communications port or displayed at the panel on the HMI. Each time the 1336-B007-EAD-FA2-L3-S1 is powered up, it executes a self-check diagnostics.
The Allen-Bradley 1336-B007-EAD-FA2-L3-S1 has a set of 90 user parameters that can be programmed over the user interface panel or through the serial port. If they are optimized, you will have a reliable drive system that will make your industrial automation system effective. The drive will also extend the useful life of the motor and the equipment attached to it. The Allen-Bradley 1336-B007-EAD-FA2-L3-S1 weight is approximated at 31.3 pounds (14.3 kilograms). This module has an IP20 rated enclosure with dimensions of 283 x 477 x 223 millimeters (11.13 x 18.75 x 8.76 inches). This AC drive is suitable for a direct connection to an input line voltage, but if there are possibilities of input power malfunctions, an isolation type transformer or line reactor might be installed before the drive. Use this drive only at temperatures up to 0 to 40 degrees Celsius or 32 to 104 degrees Fahrenheit.
Technical Description of 1336-B007-EAD-FA2-L3-S1
