Speak with a real person who will go out of the way to help!
The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1336B005EODFA2L3
- DISCONTINUED BY MANUFACTURER
- DRIVE 5HP 3PHASE 9.6AMP 300/415/460V 50/60HZ
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.

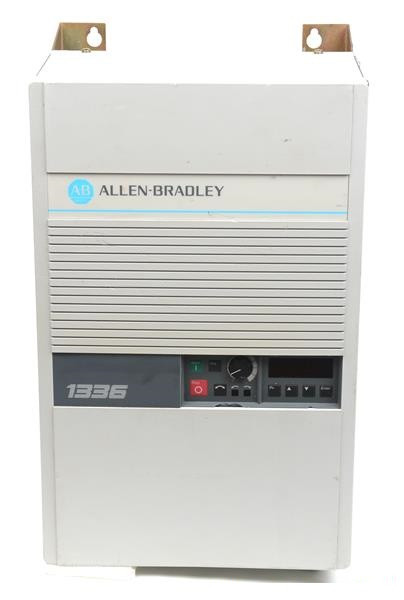

Allen Bradley 1336-B005-EOD-FA2-L3 Used Surplus
Allen Bradley - 1336B005EODFA2L3
- DISCONTINUED BY MANUFACTURER
- DRIVE 5HP 3PHASE 9.6AMP 300/415/460V 50/60HZ
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1336-B005-EOD-FA2-L3
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B005-E0D-FA2-L3 |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hz | 50/60 |
| Phases | 3 |
| Amps Out | 9.6 |
| KVA Out @ 380V AC | 6.3 |
| KVA Out @ 415V AC | 6.9 |
| KVA Out at 460V AC | 7.6 |
| Enclosure Type | Open style (IP00) |
| Enclosure Amp Rating | 003, 005, 007, or 010 |
| Bulletin | 1336 |
| Option | 115 V AC Logic Interface Board. |
| Option | Basic control panel for open or NEMA Type 1 enclosures |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B005-EOD-FA2-L3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B005-EOD-FA2-L3 units instead of migration.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B005-E0D-FA2-L3 |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hz | 50/60 |
| Phases | 3 |
| Amps Out | 9.6 |
| KVA Out @ 380V AC | 6.3 |
| KVA Out @ 415V AC | 6.9 |
| KVA Out at 460V AC | 7.6 |
| Enclosure Type | Open style (IP00) |
| Enclosure Amp Rating | 003, 005, 007, or 010 |
| Bulletin | 1336 |
| Option | 115 V AC Logic Interface Board. |
| Option | Basic control panel for open or NEMA Type 1 enclosures |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B005-EOD-FA2-L3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B005-EOD-FA2-L3 units instead of migration.
sAbout 1336-B005-EOD-FA2-L3
The 1336-B005-EOD-FA2-L3 belongs to the Classic family of Allen-Bradley’s 1336-series adjustable frequency AC drives. The drive has a frame dimension of 11.13 inches by 8.76 inches by 18.75 inches. For smooth operation, it should have a 75 degrees Celsius rated copper wire with a maximum wire size of 16 millimeters. The Allen-Bradley 1336-B005-EOD-FA2-L3 has a maximum torque of 2.26 N-m and 9.6 Amps of current output. The Allen-Bradley 1336-B005-EOD-FA2-L3 has “1336” as its bulletin number, which indicates that it can be used with all the 1336-series’ classic modules and it can be upgraded with modern peripherals as well. The code “B005” indicates that the adjustable frequency drive has three phases, it can operate under three voltage inputs; 380 Volts, 415 Volts, and 460 Volts, and it produces 6.3 kVA, 6.9 kVA, and 7.6 kVA, respectively. The AC drive can withstand shocks between 50 and 60 Hertz.
The Allen-Bradley 1336-B005-EOD-FA2-L3 offers two additional functionalities not offered by other members of the same group. The “FA2” in the part number means that the drive offers a basic control panel meant for open-style enclosures, and “L3” indicates that users can configure the wiring of the device by using the Logic Interface Board that operates at 115 Volts AC. Connect the drive to the TB3 terminal block available at the lower end of the main control board for configuring the wiring. These two options are helpful for the programmers because they save time by minimizing manual configuration. The Allen-Bradley 1336-B005-EOD-FA2-L3 belongs to the family of drives that has an open-type enclosure with the lowest protection index. The enclosure type offers no special protection against hazardous chemicals, snow, rain, or water. Make sure that the drive is installed in locations where such hazards are not present. The enclosure’s current rating is 003, 005, 007, or 010. For troubleshooting, testing, installing, or repairing the drive, it is recommended that users go through the manual and understand the working of each and every component of the drive. Make sure that the drive is disconnected from the power supply and has no current flowing before installing or repairing it.
Technical Description of 1336-B005-EOD-FA2-L3
The Allen-Bradley 1336-B005-E0D-FA2-L3 Adjustable Frequency AC Drive operates with a 380/415/460V A Input Voltage, 50/60 Hz, and 3 Phases. The 1336-B005-EOD-FA2-L3 has 9.6 Amps Out and a Open style (IP00) Enclosure Type.
