- 1326ASB460F21K4
- DISCONTINUED BY MANUFACTURER
- SERVO MOTOR
- 6.2 AMP
- 460 VAC
- 4300 RPM
- 9 NM
- 2.8 KW
- 4 INCH FRAME
- ELWOOD
- GETTYS
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Product is surplus. Manufacturer's warranties do NOT apply.

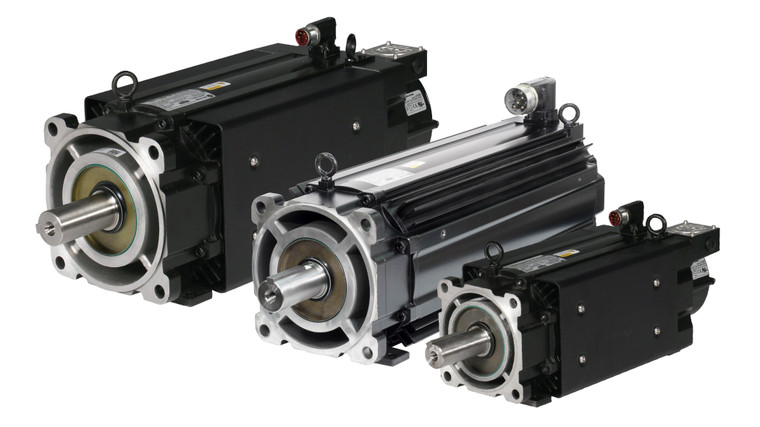

Allen Bradley 1326AS-B460F-21-K4 Used Surplus
Allen Bradley- 1326ASB460F21K4
- DISCONTINUED BY MANUFACTURER
- SERVO MOTOR
- 6.2 AMP
- 460 VAC
- 4300 RPM
- 9 NM
- 2.8 KW
- 4 INCH FRAME
- ELWOOD
- GETTYS
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1326AS-B460F-21-K4
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1326AS-B460F-21-K4 |
Product Type | Servo Motor |
Voltage | 460V AC |
Frame Diameter | 100 mm |
Rated Motor Speed | 4300 rpm |
Flange and Shaft Series | IEC Metric Flange with Keyway |
Motor Rated Torque | 9.0 Nm |
Motor Rated Output | 2.8 kW |
System Continuous Torque | 9.0 Nm |
System Peak Stall Torque | 13.1 Nm |
Standard Option | 10.2 Nm Holding Brake w/ 24V DC coil. |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326AS-B460F-21-K4 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326AS-B460F-21-K4 units instead of migration.
Manufacturer | Rockwell Automation |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1326AS-B460F-21-K4 |
Product Type | Servo Motor |
Voltage | 460V AC |
Frame Diameter | 100 mm |
Rated Motor Speed | 4300 rpm |
Flange and Shaft Series | IEC Metric Flange with Keyway |
Motor Rated Torque | 9.0 Nm |
Motor Rated Output | 2.8 kW |
System Continuous Torque | 9.0 Nm |
System Peak Stall Torque | 13.1 Nm |
Standard Option | 10.2 Nm Holding Brake w/ 24V DC coil. |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326AS-B460F-21-K4 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326AS-B460F-21-K4 units instead of migration.
sAbout 1326AS-B460F-21-K4
The 1326AS-B460F-21-K4 is one of the best servo motors that use a 460 Volt AC Voltage, a 100 millimeter Frame Diameter, and a 4300 RPM Rated motor speed. This machine comprises a 9.0 N-M system continuous torque and a 2.8 kW motor rated output. Note that these servo machines are designed for high continuous outputs and an optimal performance, hence they are accessible in three frame sizes and a broad torque range from 2.7 to 50. Since these motors are equipped with high-performance features, they are made to be used for the Kinetix 6000, 2098-HVs, or 1394 motion controlling systems and applications. It comes with a standard encoder or resolver feedback that helps the motor withstand astringent shock and vibrations. Additionally, the 1326AS-B460F-21-K4 has the capability to endure high operating temperatures. This device is equipped with an innovative magnet design, made up of a magnet flux alignment to increase flux density. This is a critical feature, since it helps improve demagnetization protection and minimizes harmonics and losses.
This device comes with powerful features that allow it to be compatible with 1389 or 1391 AC servo controllers; it also has an IP65 enclosure rating. The series is used for precise position, velocity and acceleration control in the industrial automation department. This model draws energy from neodymium magnets to attain fast acceleration, and the mounting flange on the 1326AS-B460F-21-K4 is IEC metric, while its enclosure rating is IP43. Since the device is part of the motor system with a Kinetix integrated motion solution, the 1326AS-B460F-21-K4 can be combined with the Kinetix 2000 or Kinetix 6000 servo drives. To increase the performance of the motor, try to apply a fan blowing air for this servo motor cooling. The product is available in dimensions of 70 x 40 x 40 millimeters (2.75 x 1.58 x 1.58 inches) and it weighs almost 0.5 kilograms (1.1 pounds). The 1326AS-B460F-21-K4 is designed to operate at a minimum temperature of 0 degrees Celsius (32 degrees Fahrenheit) and maximum temperature of 40 degrees Celsius (104 degrees Fahrenheit).
