4 in stock
Speak with a real person who will go out of the way to help!

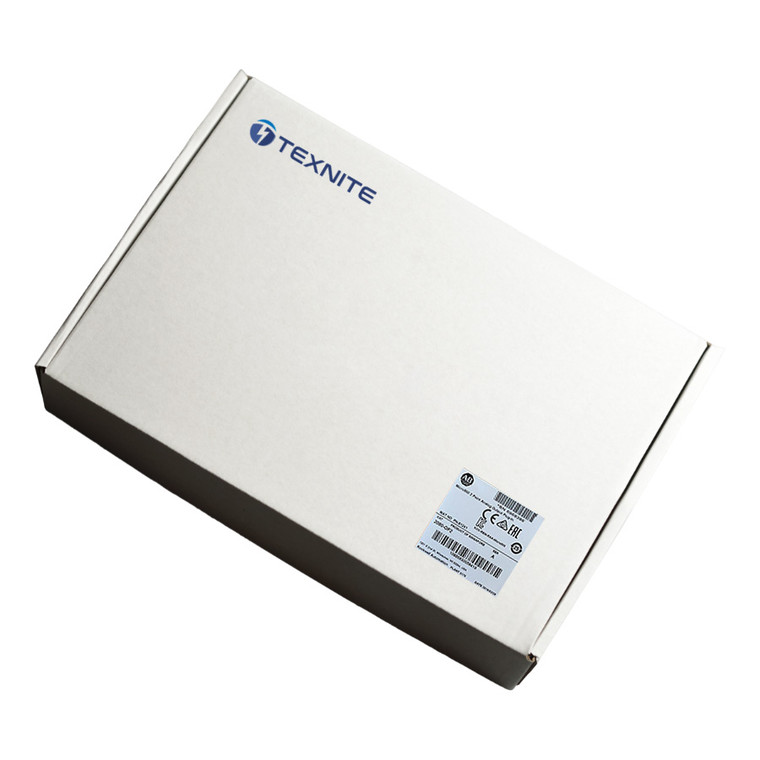

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 20AB022A3AYNANNN
- AC DRIVE
- ADJUSTABLE FREQUENCY
- POWERFLEX 70
- 240 VAC
- 3 PHASE
- 22 AMP
- 5.5 KW
- 7.5 HP
- PANEL MOUNT
- INTERFACE MODULE - FULL NUMERIC LCD
- WITH BRAKE
- FILTERED EMISSION CLASS
- STANDARD CONTROL
- NO FEEDBACK
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 20AB022A3AYNANNN Used Surplus
Allen Bradley- 20AB022A3AYNANNN
- AC DRIVE
- ADJUSTABLE FREQUENCY
- POWERFLEX 70
- 240 VAC
- 3 PHASE
- 22 AMP
- 5.5 KW
- 7.5 HP
- PANEL MOUNT
- INTERFACE MODULE - FULL NUMERIC LCD
- WITH BRAKE
- FILTERED EMISSION CLASS
- STANDARD CONTROL
- NO FEEDBACK
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
Technical Specifications for 20AB022A3AYNANNN
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 20AB022A3AYNANNN |
| Voltage | 240V AC |
| Ph | 3 |
| Amps | 22 |
| kW(Hp) | 5.5 (7.5) |
| Frame | D |
| Enclosure | Panel Mount - IP 20, NEMA/UL Type 1 |
| Interface Module | Full Numeric LCD |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Filtered A & B Frames (Optional) C, D, & D Frames (Standard) |
| Network Type | None |
| Control | Standard |
| Safe Off | N/A |
| Feedback | No Feedback - Enhanced Control |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 20AB022A3AYNANNN |
| Voltage | 240V AC |
| Ph | 3 |
| Amps | 22 |
| kW(Hp) | 5.5 (7.5) |
| Frame | D |
| Enclosure | Panel Mount - IP 20, NEMA/UL Type 1 |
| Interface Module | Full Numeric LCD |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Filtered A & B Frames (Optional) C, D, & D Frames (Standard) |
| Network Type | None |
| Control | Standard |
| Safe Off | N/A |
| Feedback | No Feedback - Enhanced Control |
About 20AB022A3AYNANNN
The Rockwell Automation 20AB022A3AYNANNN is a motor controller with an adjustable frequency. The controller has an apparent power rating of 5.5 kilowatts. The current rating for the 20AB022A3AYNANNN stands at 22 Amps while the voltage rating is capped at 240 Volts AC. The drive is powered by a 3-phase power supply source. The 20AB022A3AYNANNN has a type D frame. The controller can only comfortably handle a motor with a Horsepower rating of 7.5 Horsepower while running under normal duty. The drive has an Underwriters Laboratories Type 1 certified enclosure. The PowerFlex 20AB022A3AYNANNN has a manual supplied to ease the installation and troubleshooting process. Without an internal brake resistor, the 20AB022A3AYNANNN cannot convert the kinetic energy into electrical energy which can then be used to decelerate the motor.
However, the 20AB022A3AYNANNN contains a brake IGBT which is voltage controlled to perform high-speed on/off actions. Due to its high efficiency, the IGBT is also used in medium to high power applications such as in induction heating, switched-mode power supplies, and in traction motor control. IGBTs are capable of handling hundreds of apparent power levels in loads. The Rockwell Automation 20AB022A3AYNANNN does not contain an onboard communication port and it does not support a feedback encoder. For controlling the inputs and outputs, the 20AB022A3AYNANNN employs standard control without the need of a safe-off board. As with other PowerFlex drives in the same series, the 20AB022A3AYNANNN does not perform at its optimum in extremely high temperatures. The drive comes fitted with an LCD with a full numeric keypad.
Technical Description of 20AB022A3AYNANNN
This Allen Bradley PowerFlex 70 is a 5.5 (7.5) kW(Hp) AC Drive. This PF 70 comes with Standard Control, a Full Numeric LCD, and w/Brake. This AB VFD is Frame size D and powered with 240V AC 3 Phase and 3 Amps.
