Speak with a real person who will go out of the way to help!

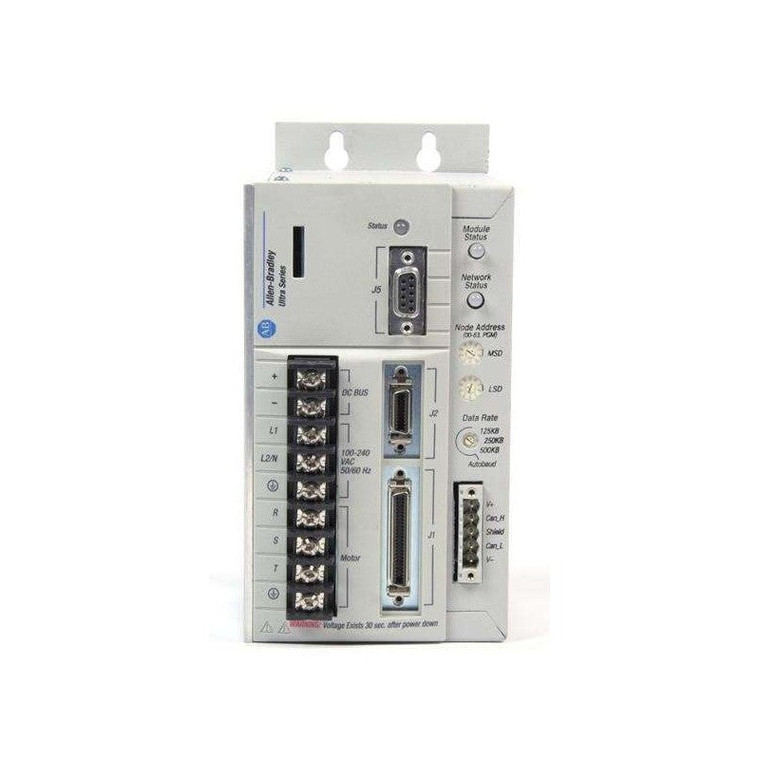

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1398DDM075
- DISCONTINUED BY MANUFACTURER 11/30/2010
- UNIVERSAL DIGITAL SERVO DRIVE
- 75 AMP
- 120/240 VAC
- 1 PHASE
- 10 HP
- 7.5 KW
- ULTRA 200 SERIES
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Product is surplus. Manufacturer's warranties do NOT apply.

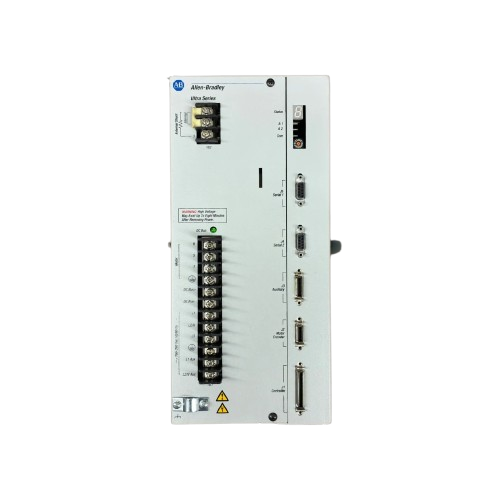

Allen Bradley 1398-DDM-075
Allen Bradley- 1398DDM075
- DISCONTINUED BY MANUFACTURER 11/30/2010
- UNIVERSAL DIGITAL SERVO DRIVE
- 75 AMP
- 120/240 VAC
- 1 PHASE
- 10 HP
- 7.5 KW
- ULTRA 200 SERIES
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
Technical Specifications for 1398-DDM-075
Manufacturer | Rockwell Automation |
Continuous Power Output | 3.5 A @120VAC; 7.5 A @ 3-phase |
Bus Capacitance | 1170 Bus µF |
Peak output current (0-pk) | 15 A, 1-phase; 35 A, 3-phase |
Continuous output current (rms) | 50 A, 1-phase; 75 A, 3-phase |
Main AC input current, Nom (0-pk) | 0.5 A |
Main AC input current, Nom (rms) | 1.0 A |
Input Frequency | 47…63 Hz |
Input Voltage | 100-240VAC, 1-phase; 100-240VAC, 1-phase; |
Product Family | Ultra 300 Kinetix Servo Drive |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1398-DDM-075 |
Weight | 21.32 lbs (9.67 kg) |
Output Peak Current | 50 amps (Single Phase); 75 amps (Three Phase) |
Bus Voltage | 141-339 Volts DC |
AC Input Frequency | 47-63 Hz |
Dimensions | 14.2 x 5.97 x 8.84 in (360.6 x 151.7 x 224.5 mm) |
AC Input Current | 30 amps rms |
Auxiliary Input-Voltage | 100-240V AC |
Address Switch | 16-Position Rotary DIP |
Peak Power Output | 240 Volts rms 14 kWatts (Single Phase) |
AC Input Voltage | 100-240 Volts rms Nominal (Single or Three Phase) |
AC Input Current | Torque or Velocity |
Operating Temperature | 0 to 55 degrees Celsius |
Product Line | ULTRA 200 Series |
UPC | 662453565323 |
Manufacturer | Rockwell Automation |
Continuous Power Output | 3.5 A @120VAC; 7.5 A @ 3-phase |
Bus Capacitance | 1170 Bus µF |
Peak output current (0-pk) | 15 A, 1-phase; 35 A, 3-phase |
Continuous output current (rms) | 50 A, 1-phase; 75 A, 3-phase |
Main AC input current, Nom (0-pk) | 0.5 A |
Main AC input current, Nom (rms) | 1.0 A |
Input Frequency | 47…63 Hz |
Input Voltage | 100-240VAC, 1-phase; 100-240VAC, 1-phase; |
Product Family | Ultra 300 Kinetix Servo Drive |
Brand | Allen-Bradley |
Part Number/Catalog No. | 1398-DDM-075 |
Weight | 21.32 lbs (9.67 kg) |
Output Peak Current | 50 amps (Single Phase); 75 amps (Three Phase) |
Bus Voltage | 141-339 Volts DC |
AC Input Frequency | 47-63 Hz |
Dimensions | 14.2 x 5.97 x 8.84 in (360.6 x 151.7 x 224.5 mm) |
AC Input Current | 30 amps rms |
Auxiliary Input-Voltage | 100-240V AC |
Address Switch | 16-Position Rotary DIP |
Peak Power Output | 240 Volts rms 14 kWatts (Single Phase) |
AC Input Voltage | 100-240 Volts rms Nominal (Single or Three Phase) |
AC Input Current | Torque or Velocity |
Operating Temperature | 0 to 55 degrees Celsius |
Product Line | ULTRA 200 Series |
UPC | 662453565323 |
About 1398-DDM-075
In particular, the 1398-DDM-075 features an AC input voltage requirement of 100-240VAC rms, 1-phase or 3-Phase and input frequency of 47-63 Hz. It also has an auxiliary input which is supply voltage isolation to the main AC input circuit. The auxiliary AC input is rated 100-240VAC, 1-Phase with frequency of 47-63 Hz and current of 1.0 Amperes at 100VAC and 0.5 Amperes at 240VAC input.
This drive has peak output current of 50 Amperes for 1-phase input and 75 Amperes for 3-phase supply while the Continuous Output Current are 15 Amperes for 1-phase and 35 Amperes for 3-phase operation. The Peak Power Output is 14 kW for 1-phase and 20 kW for 3-Phase while the Continuous Power Output is 7.5 kW at 3-phase operation.
The drive’s bus voltage is 141-339 VDC with Bus Capacitance Energy Absorption of 152 Joules and bus capacitance of 4290 µF. It has a power dissipation 300 Watts.
The 1398-DDM-075 has Five (5) user configurable 24 Volt, current sinking, optically isolated, active high inputs.; One (1) fixed assignment control (ENABLE), current sinking, optically isolated, active high input.; Four (4) assignable, 24 Volt, current sourcing, optically isolated, active high outputs and Two dedicated (BRAKE and DRIVE READY), normally open relay outputs. The embedded analog I/O channel is Two dedicated 10 bit, 0 – 10 Volt, analog inputs (+I LIMIT and -I LIMIT) and Two selectable, ±10 Volt analog outputs, one 12-bit and one 8-bit (ANALOG1 and ANALOG2).
The 1398-DDM-075 module also features an analog output with a resolution of 8 bits and 12 bits. The analog input voltage ranges from 0-10 volts. The analog input uses 10-bit resolution. The 1398-DDM-075 has an integral supply and a shunt regulator, and it uses microcontrollers to manage a machine’s position, velocity, and current. The 1398-DDM-075 Servo Drive has great functionality and requires minimal maintenance. When maintenance is needed, the standard procedure is to check the whether the cable insulation and the connections are still good. The recommended moisture limit between 5 and 95%, the same as the other ULTRA 200 drives. The weight of the 1398-DDM-075 is 21.32 lbs. The peak output current for single-phase power and the peak output current for 3-phase power are 50A and 75A, respectively. The input frequency is 47-63 Hz. When operating the 1398-DDM-075 ULTRA 200 servo drive with single-phase power, the current limit must be set properly to avoid damage to the module.
FAQ for 1398-DDM-075
What current limits parameters must be set for a single-phase 1398-DDM-075?
The current limits of a single-phase 1398-DDM-075 must be set as follows: Positive Current Limit- 50 A peak. Negative Current Limit- 50A peak. Average Current: 15 A continuous. Please note that failing to set these parameters can cause drive malfunction and/or potential damage.
What kind of memory does 1398-DDM-075 have?
1398-DDM-075 has 128kB of EPROM Flash Memory and 34kB of RAM.
Does 1398-DDM-075 have motor overload protection?
Yes, 1398-DDM-075 motor overload protection engages within 8 minutes of operation at 200% overload and within 20 seconds of operation at 600% overload.
Does this drive support operating with single phase and 3-phase input voltage?
Yes. It supports 100-240VAC 1-phase and 3-Phase.
What is the output power of this servo drive at different input voltage phases?
At single phase input, the power output is 3kW while for 3-phae, 7.5 kW.
What are compatible motors for use with the 1398-DDM-075?
The 1398-DDM-075 is compatible with Allen-Bradley brushless servo motors.
Technical Description of 1398-DDM-075
The Allen-Bradley 1398-DDM-075 has a 141-339 Volts DC Bus Voltage, a 47-63 Hz AC Input Frequency, and a 100-240V AC Auxiliary Input-Voltage. It also contains a 14.2 x 5.97 x 8.84 in (360.6 x 151.7 x 224.5 mm) Dimensions and a 30 amps rms AC Input Current.
