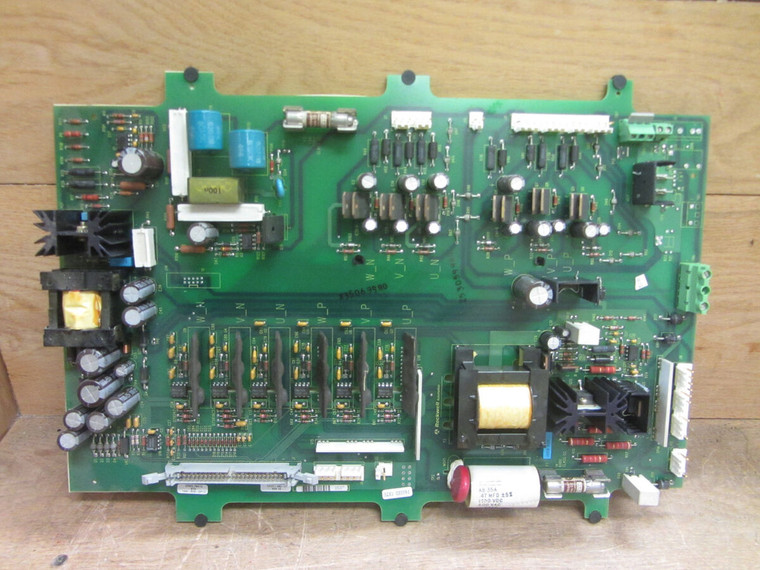

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1336BDBSP5C
- DISCONTINUED BY MANUFACTURER
- DRIVE BOARD
- GATE DRIVE
- 460 V
- 25 HP
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1336-BDB-SP5C
Allen Bradley- 1336BDBSP5C
- DISCONTINUED BY MANUFACTURER
- DRIVE BOARD
- GATE DRIVE
- 460 V
- 25 HP
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
Technical Specifications for 1336-BDB-SP5C
Brand | Allen-Bradley / Rockwell Automation |
Series | 1336 PCB Boards |
Part Number | 1336-BDB-SP5C |
Description | Gate Drive PCB |
Standard | CE, CSA, UL |
Voltage | 460 Volts AC |
Temperature | 0-50 degrees Celsius |
Horsepower | 25 HP |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-BDB-SP5C has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-BDB-SP5C units instead of migration.
Brand | Allen-Bradley / Rockwell Automation |
Series | 1336 PCB Boards |
Part Number | 1336-BDB-SP5C |
Description | Gate Drive PCB |
Standard | CE, CSA, UL |
Voltage | 460 Volts AC |
Temperature | 0-50 degrees Celsius |
Horsepower | 25 HP |
Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-BDB-SP5C has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-BDB-SP5C units instead of migration.
sAbout 1336-BDB-SP5C
The 1336-BDB-SP5C board is a spare part board for the Allen-Bradley 1336 adjustable frequency AC drives, and the spare part board has also been manufactured by Allen-Bradley. A gate drive board like this one can be used as a power amplifying device. It accepts low voltage input and amplifies the supply voltage as needed by the different components of the drive. The board is connected with the main control board of the drive by using the connector on the board. The board is manufactured using high-quality materials that have a long life. The 1336-BDB-SP5C board is compact in size and it can be easily transported across industry floors. It has no water-resistant settings and it should be protected from liquid sprays and splashes. The gate drive board is comprised of different components and it is sensitive in nature. It should be protected against electrostatic discharge in the installation area.
The 1336-BDB-SP5C board is manufactured with a voltage rating of 460 Volts AC. The board can be mounted on the front panel of the drive. The variable frequency drive should be fully disconnected from power before replacing the board. The maximum power output of the gate drive board is 25 Horsepower. It is a Series C module and it is fully compatible with the Allen-Bradley Force series variable frequency drives (VFDs). The environmental temperature should not exceed a maximum of 50 degrees celsius for the proper functioning of the board. The 1336-BDB-SP5C board is certified with modern industrial and environmental standards including the CE, CSA, and UL. standards It also meets all the specifications that are required to meet the EMC standard. The 1336 drives are known to be very efficient in speed control and torque regulation.
