Allen Bradley 1336-BDB-SP17A Used Surplus

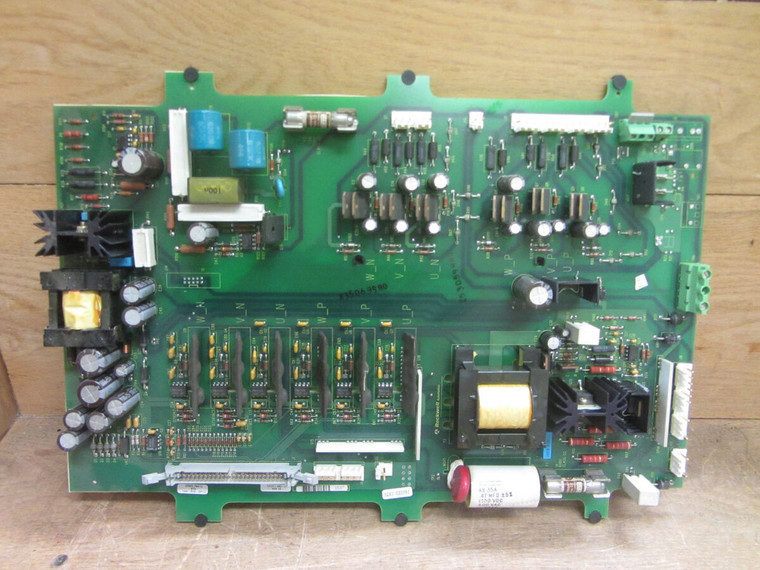

The 1336-BDB-SP17A board is a PCB (printed circuit board) manufactured and designed by Allen-Bradley/Rockwell Automation. This printed circuit board is made with precision and categorized as a highly-reliable component that can last for a long time. This component is available as a spare part for the Allen-Bradley 1336 drives, including the PLUS, PLUS II, FORCE, IMPACT, and the REGEN series. Even though the 1336 drives are high-quality units, tough operating conditions and high usage rates in industrial environments require them to have spare parts that reduce waste, increase efficiency, and extend product life. These spare parts can be installed easily and the drives have a simple design that ensures that there are no unnecessary parts. The 1336-BDB-SP17A spare part board is used for drives that are highly programmable and drives that have special functions such as auto-tuning, process PI control, an auto economizer feature, and an auto-restart on power-up feature.

The 1336-BDB-SP17A printed circuit board is installed into drives with a type C frame. The 1336 drives with C frames have the following dimensions (W x H x D): 301.8 millimeters (11.8 inches) x 701 millimeters (27.6 inches) x 225 millimeters (8.8 inches). These dimensions refer to 1336 PLUS II series drives. The 1336-BDB-SP17A board has a specified voltage rating of 460 Volts and a power rating of 40 Horsepower. The 1336 drives are intended for usage within an operating temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit) and they are resistant to shocks, vibrations, high altitudes, and other conditions. These drives provide protective features such as the drive overcurrent trip, power ride-thru, logic control rid-thru, short circuit trip, and the ground fault trip.
