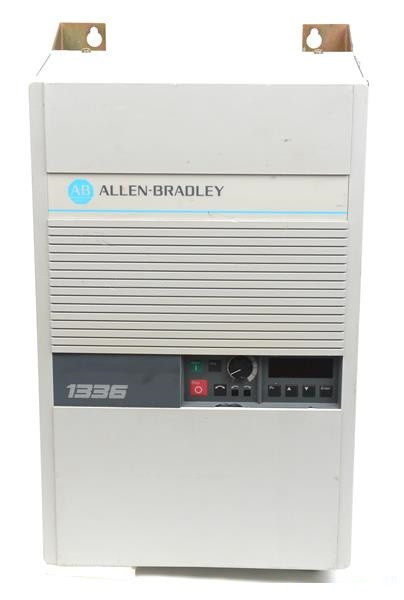

Allen Bradley 1336-B005-EAD-L3

The 1336-B005-EAD-L3 drive is an adjustable frequency AC drive manufactured by Allen-Bradley. It belongs to the 1336 classic series of drives, which includes drives that have been upgraded to suit present-day industrial requirements. In addition to the basic features, the 1336-B005-EAD-L3 drive also has 2 notable options which make it different from other drives in its series. It has a factory-installed option that shows that the drive has a logic interface board. This logic interface board runs on 115 Volts AC and it should be connected to the J8 and J9 junctions on the board. It is designed to help in controlling the wiring structures without having to disassemble the drive. The operators can identify the faults and take necessary actions quickly without any problems.

Other features of the Allen-Bradley 1336-B005-EAD-L3 drive include a NEMA Type 1 enclosure and the Drive B rating. It can operate on 3 different input voltages which include 380, 415, or 460 Volts AC voltage ratings. The drive has 3 operating phases, and an output current rating of 9.6 Amps, with an operating shock of between 50 and 60 Hertz as well as a maximum torque of 20 pounds on an inch. It has all of its components enclosed in a large frame measuring 11.13 x 8.76 x 18.75 inches. The enclosure is secure and it has a NEMA Type 1 enclosure which means that the drive is protected against debris that is larger than 12 millimeters but it cannot prevent smaller particles, water, or other liquids from getting inside the device. For this reason, the 1336-B005-EAD-L3 drive is especially suitable for indoor systems. It also requires delicate handling because some components may contain hazardous voltage, such as the printed circuit boards.
