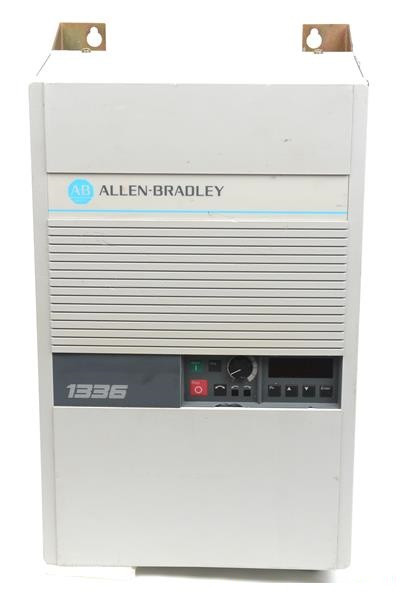

Allen Bradley 1336-B003-EOD-L1

Manufactured by Allen-Bradley, the 1336-B003-EOD-L1 drive is a 1336 series adjustable frequency AC drive with an open frame chassis and it comes with a constant torque. The 1336 adjustable frequency AC drive is designed for use in standard 3-phase induction motors. It features an output frequency rating at 50/60 Hertz and a current output of 6 Amps. The 1336-B003-EOD-L1 drive comes with an input voltage of 380/415/460 Volts AC. The rated KVA output at 380 Volts AC is 3.9, and it is 4.3 KVA of output at 415 Volts AC and 4.8 KVA output at 460 Volts AC. The 1336-B003-EOD-L1 drive features an open enclosure with an IP 00 protection rating while the enclosure current rating is 3, 5, 7, or 10 Amps. The 1336-B003-EOD-L1 drive comes with the 5 Volts DC TTL logic contact closure interface board (L1).

The 1336-B003-EOD-L1 drive features electrostatic discharge-sensitive parts. Therefore, static control precautions should be observed when installing, testing, running, repairing, or servicing the unit. If the users ignore the electrostatic discharge precautions, there is a risk of damage to the drive’s components. When installing or performing any task on the drive, check the user manual to become familiarized with the electrostatic discharge guidelines. The 1336-B003-EOD-L1 drive features the local display and the programming panels that are commonly used for viewing and programming the unit. These parameters are viewable through the display panel even when the unit is active. To view the parameters while the drive is running, use the PR button which is located on the front of the panel.
