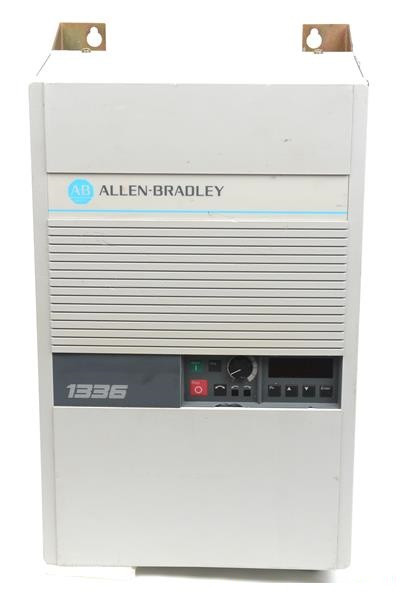

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.

Allen Bradley 1336-B003-EOD-FA2-L3
  • 1336B003EODFA2L3
  • DISCONTINUED BY MANUFACTURER 08/30/2012
  • AC DRIVE
  • 60HZ
  • 3 HP 6AMP
  • CONSTANT TORQUE
  • OPEN FRAME CHASIS
  • NO CASE
  • 380/415/460VAC
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.

Allen Bradley 1336-B003-EOD-FA2-L3
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.

Allen Bradley 1336-B003-EOD-FA2-L3

Allen Bradley
Part
#1336-B003-EOD-FA2-L3
Condition:
New
5 in stock
$2,023.00
Adding to cart… The item has been added
  • 1336B003EODFA2L3
  • DISCONTINUED BY MANUFACTURER 08/30/2012
  • AC DRIVE
  • 60HZ
  • 3 HP 6AMP
  • CONSTANT TORQUE
  • OPEN FRAME CHASIS
  • NO CASE
  • 380/415/460VAC
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

QUICK DELIVERY

FREE SHIPPING

1 YEAR WARRANTY

EASY RETURNS

Questions?

Speak with a real person who will go out of the way to help!

Call

833 839 6483

 Mail

sales@texnite.com
Start

Chat

Reviews

Description

    Technical Specifications for 1336-B003-EOD-FA2-L3

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336-B003-E0D-FA2-L3
Product TypeAdjustable Frequency AC Drive
Input Voltage380/415/460V AC
Hz50/60
Phases3
Amps Out6
KVA Out @ 380V AC3.9
KVA Out @ 415V AC4.3
KVA Out at 460V AC4.8
Enclosure TypeOpen style (IP00)
Enclosure Amp Rating003, 005, 007, or 010
Bulletin1336
Option115 V AC Logic Interface Board.
OptionBasic control panel for open or NEMA Type 1 enclosures
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-B003-EOD-FA2-L3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B003-EOD-FA2-L3 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336-B003-E0D-FA2-L3
Product TypeAdjustable Frequency AC Drive
Input Voltage380/415/460V AC
Hz50/60
Phases3
Amps Out6
KVA Out @ 380V AC3.9
KVA Out @ 415V AC4.3
KVA Out at 460V AC4.8
Enclosure TypeOpen style (IP00)
Enclosure Amp Rating003, 005, 007, or 010
Bulletin1336
Option115 V AC Logic Interface Board.
OptionBasic control panel for open or NEMA Type 1 enclosures
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-B003-EOD-FA2-L3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B003-EOD-FA2-L3 units instead of migration.

s

About 1336-B003-EOD-FA2-L3

The Allen-Bradley 1336-B003-EOD-FA2-L3 adjustable frequency AC drive can run on 380, 415, 460 Volts AC input voltage, with a frequency of 50 to 60 Hertz and 3 phases. It has an open IP 00 enclosure type for protection. The drive also comes with logic interface board options rated at 115 Volts AC as well as a basic control panel that is suitable for the open or NEMA 1 types of enclosures. The 1336-B003-EOD-FA2-L3 drive by Allen-Bradley is part of Series A of the 1336 adjustable frequency AC drives. This drive features an input current of 5.7 Amps at 50 to 60 Hertz and an output current of 6 Amps at 0 to 250 Hertz. It comes with a start and stop control circuit made of solid-state components. This drive is specially engineered and intended to be regulated by the control input signals, which are also applied when starting and stopping the variable frequency drives.



The 1336-B003-EOD-FA2-L3 drive’s stop input must be set to “false status” first, then set to the accurate state to restart it. It is essential to apply power to the drive when the users want to see or set up various parameters. It comes in a modular design to enable easy troubleshooting as well as easy replacement of spare parts, thus reducing the production downtime. These drives feature a bus charge neon indicator which offers a visual signal that shows the presence of bus voltage. The bus capacitor of the 1336-B003-EOD-FA2-L3 drive is at the left side of the main chassis while the Q1, Q2, and Q3 transistor modules are placed around the main chassis center. Users are advised to mark all the bus bars, connections, and wires so that they correspond to the component connections and terminals.



Technical Description of 1336-B003-EOD-FA2-L3

The Allen-Bradley 1336-B003-E0D-FA2-L3 Adjustable Frequency AC Drive operates with a 380/415/460V A Input Voltage, 50/60 Hz, and 3 Phases. The 1336-B003-EOD-FA2-L3 has 6 Amps Out and a Open style (IP00) Enclosure Type.
