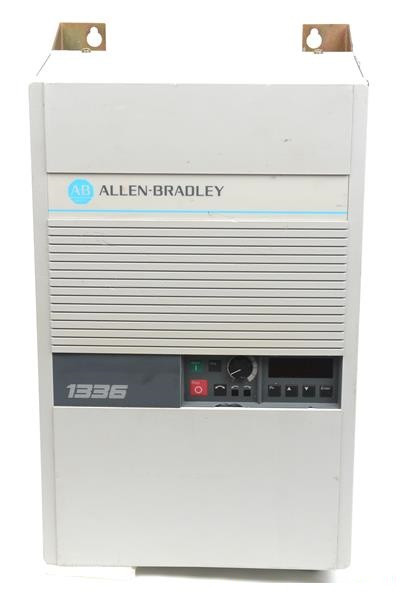

Allen Bradley 1336-B003-EOD

The 1336-B003-EOD is an adjustable frequency AC drive manufactured by Allen-Bradley. The Allen-Bradley 1336-B003-EOD belongs to Series A of the 1336 Adjustable Frequency AC Drives. The Allen-Bradley 1336-B003-EOD feature 3 phases, a 5.7 Amps input current at 50/60 Hertz, a kVA rating of 3.8/4.1/4.5 kVA, and 6 Amps of output current at 0 to 250 Hertz. The Allen-Bradley 1336-B003-EOD is contained in a NEMA Type 1 (IP20) enclosure type. The start and stop control circuitry in the Allen-Bradley 1336-B003-EOD is made of solid-state components. The Allen-Bradley 1336-B003-EOD is designed to be controlled by control input signals that will start and stop the adjustable frequency motor.

The stop input to the Allen-Bradley 1336-B003-EOD must first be set to “false status”, then return to the correct state to restart the adjustable frequency AC drive. Power should be applied to the Allen-Bradley 1336-B003-EOD when viewing or changing the parameters. The Allen-Bradley 1336-B003-EOD is modular by design to enhance troubleshooting and spare parts replacement, reducing production downtime. A bus charge neon indicator provides visual indication that bus voltage is present; the bus capacitor of the Allen-Bradley 1336-B003-EOD is located on the left side of the main chassis while the transistor modules Q1, Q2, and Q3 are located near the center of the main chassis. The users should mark the connections, bus bars, and wire to correspond with their component connections and terminals before removing the connections, bus bars, and wires in order to prevent incorrect wiring during the assembly process.
