Allen Bradley 1336-B003-EJD

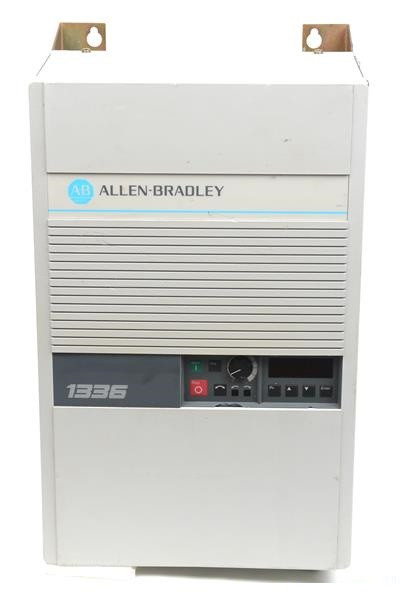

The 1336-B003-EJD is an Adjustable Frequency AC Drive manufactured by Allen-Bradley. The Allen-Bradley 1336-B003-EJD belongs to the 1336 Adjustable Frequency AC Drives Series A. The Allen-Bradley 1336-B003-EJD features 3 phases, 6 Amps of current output, 3.9 kVA output at 380 Volts AC and 380/415/460 Volts input voltage. The Allen-Bradley 1336-B003-EJD is housed in a NEMA Type 12 (IP54) Enclosure Type. The voltage on each phase of the incoming line to the Allen-Bradley 1336-B003-EJD AC drive should match the input rating, however, if the incoming line voltage is out of this tolerance range, the Allen-Bradley 1336-B003-EJD AC drive may be damaged or fail to operate.

The users should not use common cabling for AC input or output leads when the Allen-Bradley 1336-B003-EJD is connected to other AC drives. Also, all the signal wiring should be run separate from the power or control wiring, and the shields should be grounded at the drive end, but only at one of the ground lugs provided. A transient suppression network is added across the coils of the Allen-Bradley 1336-B003-EJD to prevent erratic behavior due to brake coil electrical noise transients. The Allen-Bradley 1336-B003-EJD is equipped with a chassis ground used to connect the drive chassis to a common ground and also the frame must be connected to the same common ground. The Allen-Bradley 1336-B003-EJD can protect the output power components for adequate performance when insufficient load inductance occurs.
