Allen Bradley 1326AB-B4E-11

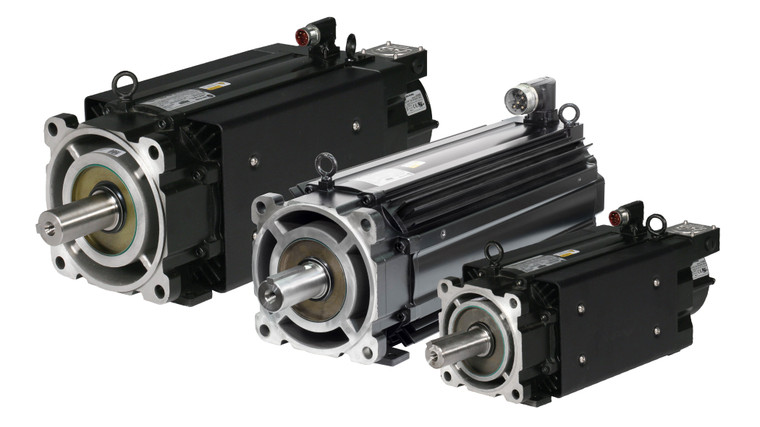

The 1326AB-B4E-11 is an Allen-Bradley servo motor that comes with a continuous torque as well as a superior motor output rating. This servo motor, which lowers the overall support costs, speeds up production, and provides advanced automation features, belongs to the 1326AB series of servo motors. The 1326AB-B4E-11’s frame diameter is 108 millimeters. Moreover, this Allen-Bradley servo motor’s bolt center measures 115 millimeters. The 1326AB-B4E-11 comes with a powerful 30-millimeter-long magnetic stack. The 1326AB-B4E-11 is rated at 460 Volts AC and it can run at a speed of 300 revolutions per minute. However, depending on the intended industrial application, this speed can increase to 4,000 revolutions per minute. The 1326AB-B4E-11 comes with an IEC metric flange featuring a keyway shaft—making it mountable. The module has an IP67 environmental rating. When mounting the 1326AB-B4E-11 servo motor, ensure it is placed vertically with the shaft positioned up or down.

With a torque rating of 6.6 N-M and an output power rating of 1.4 kilowatts (kW), the 1326AB-B4E-11 fits into any industrial application—including those requiring high torque ratings. Other important specs of the 1326AB-B4E-11 servo motor include a 5.1 N-m continuous system torque and a 10.1 N-m system peak (stall) torque. The continuous system stall current of this Allen-Bradley module is 3 Amps while its system peak current (stall) is 6 Amps. The 1326AB-B4E-11 comes with an array of features—including a long magnetic stack, a superior speed (which can be adjusted upwards to suit demanding applications), and a continuous torque—making it an important purchase and investment that users can make to take their industrial applications to another new level.
