Allen Bradley 1326AB-B430E-S2K4L

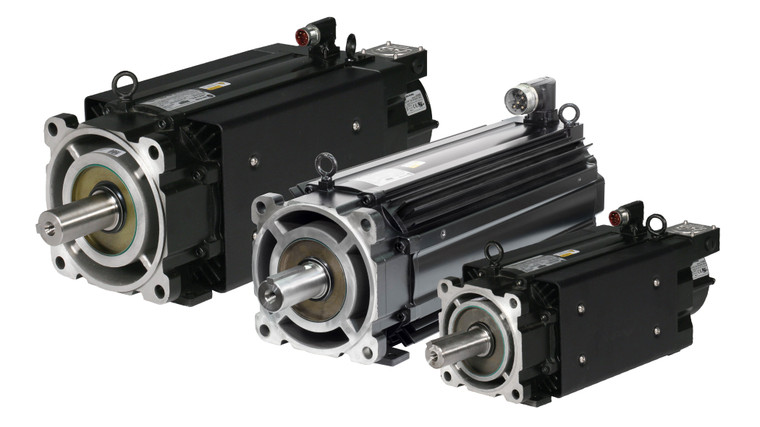

The Allen-Bradley 1326AB-B430E-S2K4L servo motor is a servo motor with an operating speed of 3000 RPM. It is specially designed for factory use and it has a voltage rating of 460 Volts AC. The frame diameter of this servo motor variant is 149 millimeters with a magnetic stack length of 430. The motor has a holding brake with a 24 Volts DC coil with a braking torque of 8.1 N-m. The servo motor comes with a continuous rated torque of 6.6 N-m and a peak torque of 58 N-m. It comes with a rated power of 2 Horsepower. The rotor motor inertia of the servo motor is 0.0010 kg-m2. The 1326AB-B430E-S2K4L servo motor comes with 4 poles. It has a voltage constant of 171.1 krpm. The winding inductance phase-to-phase for the servo motor is 40.2 mH. It has a thermal constant of 2.3 degrees Celsius/Watt and a thermal constant of 1000. Servo motors are energy-efficient devices and they are used in position control. The servo motor is controlled with an electric signal which controls the position and movement of the shaft.

The 1326AB-B430E-S2K4L servo motor comes with an IP 67 enclosure that protects the servo motor from dust and dirt, water sprays, and harmful gases and vapors. The servo motor can be mounted both horizontally and vertically. The servo motor is equipped with an IEC metric flange along with a keyway. The 1326AB-B430E-S2K4L servo motor comes with a resolver-based feedback system. The servo motor offers a precision balance of 0.0005 inches with total peak-peak displacement. The servo motor is equipped with a thermal switch in the motor windings which offers a thermal overload indication.
