Speak with a real person who will go out of the way to help!

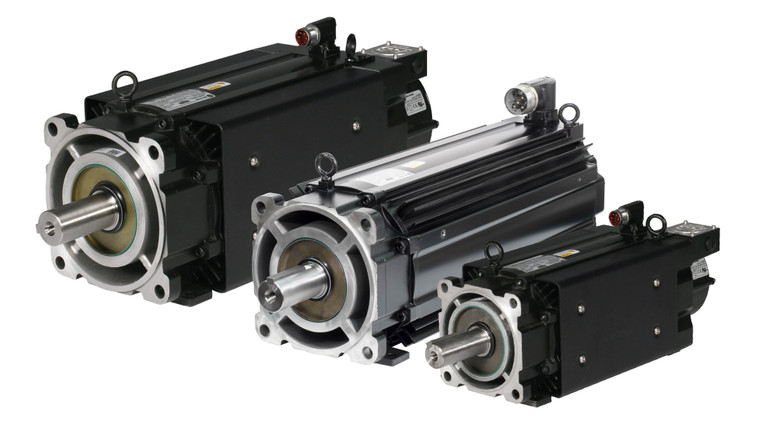

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1326ABB430EM2L
- DISCONTINUED BY MANUFACTURER
- SERVO MOTOR
- AC PERMANENT MAGNET
- 1326AB TORQUE PLUS SERIES
- 460/380 VAC
- 108 MM FRAME DIAMETER
- 3000 RPM
- 1.4 KW
- 6.6 NM
- 3-3.9 AMP
- MULTI TURN HIGH RES FEEDBACK
- IP67
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1326AB-B430E-M2L
Allen Bradley - 1326ABB430EM2L
- DISCONTINUED BY MANUFACTURER
- SERVO MOTOR
- AC PERMANENT MAGNET
- 1326AB TORQUE PLUS SERIES
- 460/380 VAC
- 108 MM FRAME DIAMETER
- 3000 RPM
- 1.4 KW
- 6.6 NM
- 3-3.9 AMP
- MULTI TURN HIGH RES FEEDBACK
- IP67
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1326AB-B430E-M2L
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 1326 Motors |
| Part Number | 1326AB-B430E-M2L |
| Description | Servo motor |
| Voltage | 460 Volts AC |
| Bolt center | 149 millimeters |
| Insulation | Class H |
| Output power | 1.4 kW |
| Torque Constant | 1.80 Nm |
| Voltage Constant | 121 Volts |
| Operating Speed | 3000 RPM |
| Terminal Resistance | 7.05 ohms |
| Temperature | 0-40 degrees Celsius |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326AB-B430E-M2L has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326AB-B430E-M2L units instead of migration.
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 1326 Motors |
| Part Number | 1326AB-B430E-M2L |
| Description | Servo motor |
| Voltage | 460 Volts AC |
| Bolt center | 149 millimeters |
| Insulation | Class H |
| Output power | 1.4 kW |
| Torque Constant | 1.80 Nm |
| Voltage Constant | 121 Volts |
| Operating Speed | 3000 RPM |
| Terminal Resistance | 7.05 ohms |
| Temperature | 0-40 degrees Celsius |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1326AB-B430E-M2L has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326AB-B430E-M2L units instead of migration.
sAbout 1326AB-B430E-M2L
The 1326AB-B430E-M2L servo motor is an AC servo motor device manufactured using ferrite magnets. Ferrite magnets are known for their cost-effectiveness when compared with other materials. This servo motor has been developed by Allen-Bradley. The servo motor is equipped with a motor junction box kit that provides axially mounted connectors for connections. It allows the motor connectors without needing extra wiring. The servo motor is a 460 Volts AC rated device. It has been designed for industrial purposes only. The frame diameter of the servo motor is 149 millimeters. The 1326AB-B430E-M2L servo motor has a rated output of 1.4 kilowats. The maximum ambient temperature for normal operation is 40 degrees Celsius. It has Class H insulation. The insulation is also certified with the UL standards. The servo motor has a torque constant of 1.80 N-m and a voltage constant of 121 Volts/1000 RPM. The terminal resistance of the servo motor is 7.05 ohms.
The Allen-Bradley 1326AB-B430E-M2L servo motor is a high-performing device and it is part of the 1326 series of servo motors. The maximum operating speed of the motor is 3000 RPM. The motor uses a convection cooling method to maintain the temperature. Enough clearance should be left around the servo motor when it is mounted. The servo motor has a stainless-steel build with an aluminum enclosure which helps to achieve better heat dissipation. The 1326AB-B430E-M2L servo motor uses environmentally sealed cables which are able to withstand harsh environmental conditions. The motor uses an innovative design which reduces the size of the motor and offers higher torque.
