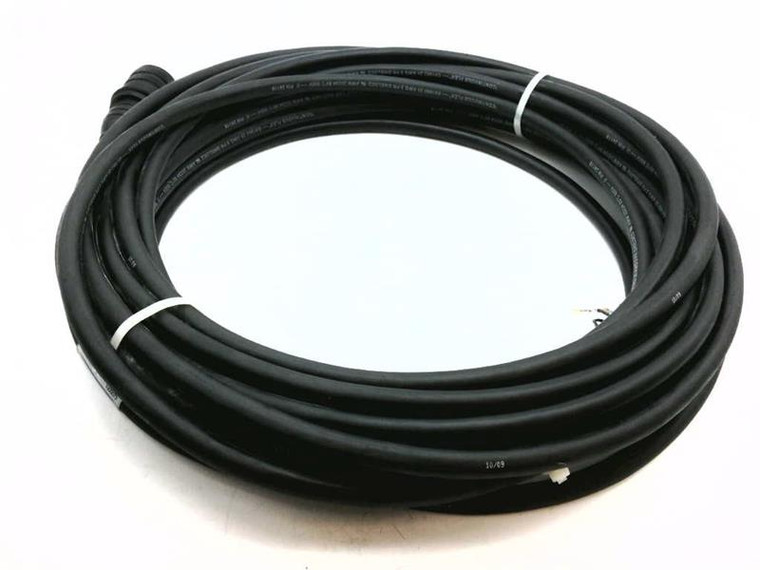

Allen Bradley 1326-CPB1-030

The Allen-Bradley 1326-CPB1-030 torque plus servo motor power cable (Series B) is power cable assembly that is used with the 460 Volts AC rated 1326 series servo motors and the 1394 series motion control system. The 1326-CPB1-030 power cable is UL listed, and it is built to provide enhanced and low-cost cable solutions for high-performance motion systems. The 1326-CPB1-030 power cable comes with a braided shield wire which offers a high degree of electromagnetic shielding and protection from electrical components around it, and it offers a quick and simplified installation process when it is used with the push/pull connector-end of the 1326 servo motor it is connected to. It is compatible with the Allen-Bradley 1326AB-B4xx and the 1326AB-B5xx series motor frames, and also with the Allen-Bradley 1391-DES or 1391B-ES drive families.

The 1326-CPB1-030 cable has a total cable length of 15 meters (49 feet), and a maximum bend radius of 76 millimeters. It has a maximum cable diameter of 14 millimeters (0.5 inches) and an approximate connector size of 43 millimeters. It is shipped as a UL-listed assembly comprising a standard power cable and an installation kit that includes a connector housing, a plastic insulation body, 9 contact pins, and an installation manual. It comes with an IP 65 rated environmentally sealed enclosure, and it provides protection from harsh industrial environmental conditions. The 1326-CPB1-030 cable supports in-line cable connections that meet the CE requirements, and it also supports remote in-line connection for low-cost cabling outside the cabinet wall. The 1326-CPB1-030 cable has 10 wires (3 power wires, 2 brake wires, 2 thermostat wires, a GND wire, and a braided shield wire) with 9 connector pin-outs for connections to the appropriate Allen-Bradley 1394 series terminals.
