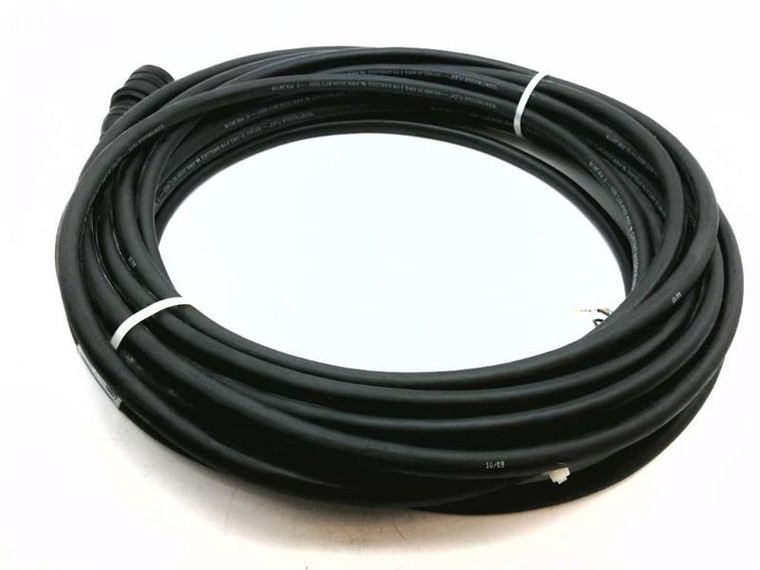

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.

  • 1326CPB1015
  • DISCONTINUED BY MANUFACTURER
  • SERVO MOTOR CABLE
  • 15 METER (49.21 FT.)
  • FOR 4/48 FRAMES
  • 1326 SERIES
  • FOR 1326AS-B3XXX AND 1326AS-B4XXX MOTORS
  • SINGLE STANDARD CONNECTOR
  • IP 65 RATED
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.

Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.

Allen Bradley 1326-CPB1-015

Allen Bradley
Part
#1326-CPB1-015
Condition:
New
3 in stock
$2,238.00
Adding to cart… The item has been added
  • 1326CPB1015
  • DISCONTINUED BY MANUFACTURER
  • SERVO MOTOR CABLE
  • 15 METER (49.21 FT.)
  • FOR 4/48 FRAMES
  • 1326 SERIES
  • FOR 1326AS-B3XXX AND 1326AS-B4XXX MOTORS
  • SINGLE STANDARD CONNECTOR
  • IP 65 RATED
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

QUICK DELIVERY

FREE SHIPPING

1 YEAR WARRANTY

EASY RETURNS

Questions?

Speak with a real person who will go out of the way to help!

Start

Chat

Reviews

    Technical Specifications for 1326-CPB1-015

BrandAllen-Bradley / Rockwell Automation
Series1326 Motors
Part Number1326-CPB1-015
DescriptionPower Cable
Voltage460 Volts AC
ApplicationSatandard
ShieldingBraided Shield Wire
Quantity1
Connection TypeLocal and Remote In-line Connection
Ingress RatingIP65
Cable Length15 Meters
Bend Radius76.2 millimeters
Number of Wires10
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1326-CPB1-015 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326-CPB1-015 units instead of migration.

BrandAllen-Bradley / Rockwell Automation
Series1326 Motors
Part Number1326-CPB1-015
DescriptionPower Cable
Voltage460 Volts AC
ApplicationSatandard
ShieldingBraided Shield Wire
Quantity1
Connection TypeLocal and Remote In-line Connection
Ingress RatingIP65
Cable Length15 Meters
Bend Radius76.2 millimeters
Number of Wires10
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1326-CPB1-015 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1326-CPB1-015 units instead of migration.

s

About 1326-CPB1-015

The Allen-Bradley 1326-CPB1-015 torque plus servo motor power cable is a Series B power cable assembly for the Allen-Bradley 1326AB series brushless AC synchronous servo motors with 460 Volts AC voltage ratings. This UL-listed cable assembly is designed to provide a motor cabling solution to a wide range of high-performance motion control systems. The 1326-CPB1-015 cable features braided cable shielding that offers superior electromagnetic noise immunity and a push/pull connector point at the motor end for easy installation. The 1326-CPB1-015 cable is compatible with the 460 Volts AC rated 1326AB series servo motors with the 1326AB-B4xx and 1326AB-B5xx frames and from the Allen-Bradley 1391B-ES or 1391-DES drive family. It is also the ideal power cable solution for the 1394 motion control system.







The 1326-CPB1-015 cable has a maximum cable length of 15 meters (49.2 feet), and an approximate cable diameter of 14 millimeters (0.55 inches). The 1326-CPB1-015 cable is a single-standard power cable designed for standard 1394 applications, and it comes with an environmentally sealed IP 65 enclosure rating that offers protection in harsh environmental conditions. This power cable assembly can provide CE compliant in-line connection solutions, and it allows for quick connection or disconneciont both inside and outside the cabinet wall (for in-line and remote in-line connections). The 1326-CPB1-015 power cable consists of 9 individually-isolated wires (3 power, 2 brake wires, 2 thermostat wires, 1 GND wire, and 1 braided shield wire) with an average wire gauge size of 1.36-millimeters square (16 AWG) and 9 different pinpoints. The power wires connect to the U1, V1, and W1 terminals, and the brake wires connect to the TB1-3 and TB1-4 1394 terminals.
