Allen Bradley 1326-CFU-50

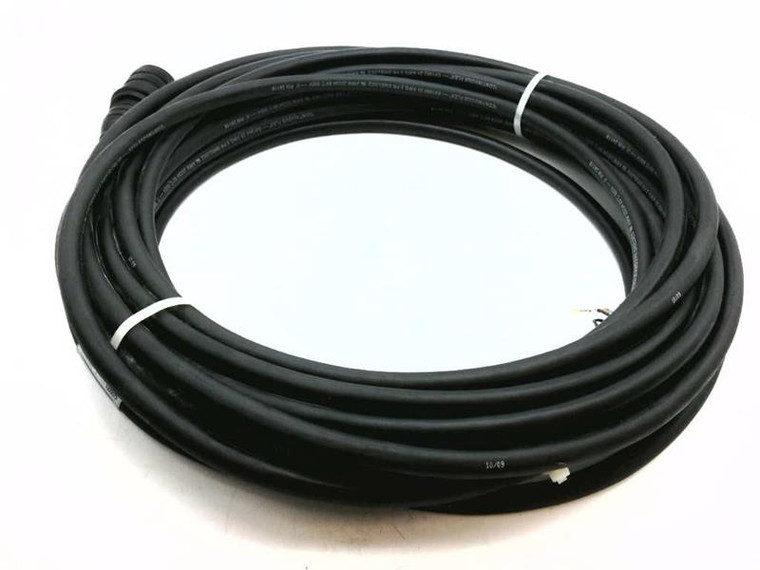

The Allen-Bradley 1326-CFU-50 torque plus standard feedback extended-length cable is a commutation and feedback cable assembly that is built to provide high-quality cable solutions to the 1326 series servo motors and the 1394 series servo applications. The 1326-CFU-50 cable is compatible with every 1326AB series servo motor, and it features braided shield wire for enhanced electromagnetic noise immunity. It supports the molded push/pull connector-end of the 1326AB motors, allowing for easy and quick installations. The 1326-CFU-50 cable, like every 1326 rugged cable, offers a unique cable bend radius, which makes it ideal for high shock and high vibration applications. It supports remote in-line connections, providing low-cost, long-distance cabling solutions outside the cabinet walls. It also supports an in-line connection within the cabinet wall that meets the CE requirements.

The 1326-CFU-50 cable assembly comprises a connector kit that includes a connector housing, pin-out contacts (6 pins), an insulation body, an installation manual, and one single-standard commutation and feedback cable. This commutation and feedback cable comprises 9 isolated wires and 1 braided shield wire. Except for the braided wire (with a 36 AWG wire size), every other wire has an approximate wire diameter of 20 AWG. The 1326-CFU-50 cable has 3 black individually-isolated wires with A, D, and H labeled connector pins for connecting to the TB1-10, TB1-17, and TB1-4 terminals. It also has 1 Green wire (G) for connecting to the TB1-3 terminal, 1 Red wire (E) for connecting to the TB1-6 terminal, 1 White wire (B) for connecting to the TB1-9 terminal, 3 shield drain wires for connecting to the TB1-8, TB1-2, and TB1-5 terminals, and a braided shield wire (TB1-1) for providing grounding. The 1326-CFU-50 cable has a maximum cable length of 50 meters, and an approximate cable diameter of 10.2 millimeters.
