Allen Bradley 1326-cfu-100

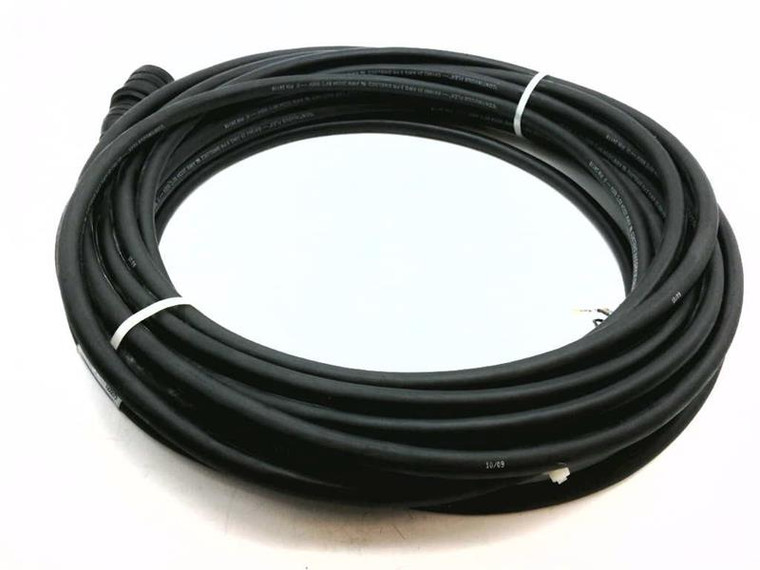

The 1326-CFU-100 torque plus connector and cable assembly is a commutation and feedback cable for the Allen-Bradley 1326AB motors and 1394 motion control system. It is designed to provide a low-cost cable solution for high-performance motion systems. This cable features braided shield wire for enhanced electromagnetic noise immunity, and it supports the pull and push connector end of the 1326AB motors. The 1326-CFU-100 cable is a single-standard feedback cable with 9 individually-isolated wires and 1 braided shield wire. It comprises of 3 black wires (with A, D, and H label connector pins) for connecting to the TB1-10, -7, and -4 terminals,1 white wire (with a B label connector pin) for connecting to the TB1-9 terminal, 1 red wire (with an E label connector pin) for the TB1-6 terminal, 1 green wire (with a G label connector pin) for the TB1-3 terminal, 2 shield drain wires for connecting to the TB1-2 and -8 terminals, and 1 braided shield wire for connecting the TB1-1 terminal to ground.

The 1326-CFU-100 cable comes as a cable assembly comprising a single-standard commutation and a feedback cable and a connector kit that includes pin-out contacts, an insulation body, connector housing, and an installation manual. The 1326-CFU-100 commutation and feedback cable comes as an environmentally sealed cable, and this makes it suitable for use in applications in harsh industrial environments. It has an IP 65 ingress protection rating, protecting the cable from contaminants such as dust particles and water jets and spraying. The 1326-CFU-100 commutation and feedback cable has a total cable length of 100 meters, with 101.6 millimeters of cable height, and 50.8 millimeters of maximum bend radius.
