The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
Revisions: Ser A
Description: This adjustable frequency drive built by AB is a 5.5 kW rated VFD. This PowerFlex 70 AC drive has a horsepower rating of 7.5 HP, has an amperage rating of 22 A, and has an enhanced unit included on the drive. In addition, this Allen-Bradley/Rockwell Automation AC drive has power requirements of 240 VAC 3 phase. This adjustable frequency drive comes with no HIM, instead the drive comes with a blank cover. It has a D frame size.
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.

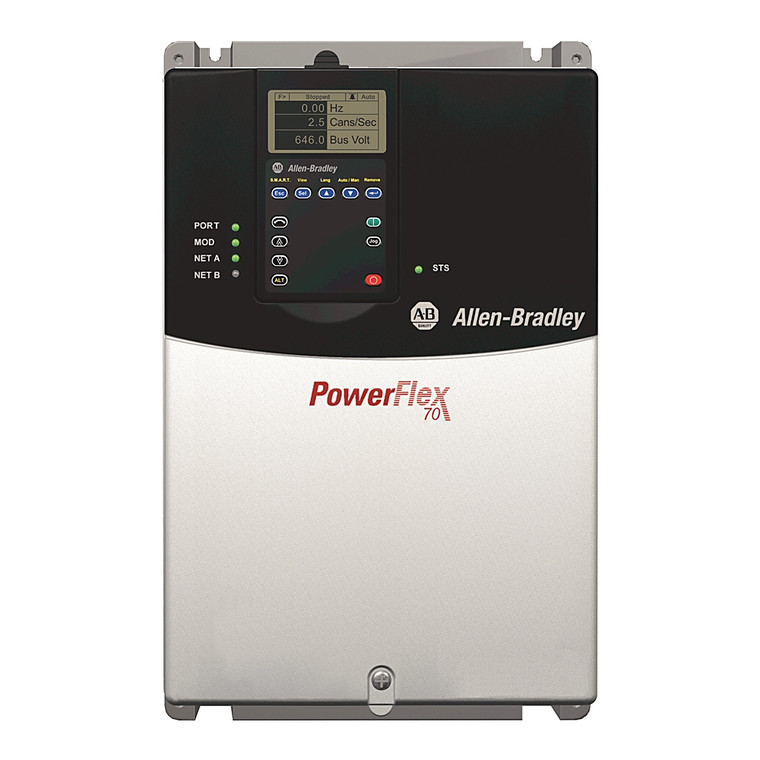

Allen Bradley 20AB022F0AYNANC0 Used Surplus
Allen Bradley
Revisions: Ser A
Description: This adjustable frequency drive built by AB is a 5.5 kW rated VFD. This PowerFlex 70 AC drive has a horsepower rating of 7.5 HP, has an amperage rating of 22 A, and has an enhanced unit included on the drive. In addition, this Allen-Bradley/Rockwell Automation AC drive has power requirements of 240 VAC 3 phase. This adjustable frequency drive comes with no HIM, instead the drive comes with a blank cover. It has a D frame size.
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
20AB022F0AYNANC0
Description: PowerFlex 70
Input Voltage
240 (208) VAC, 3 PH
240 (208) VAC, 3 PH
Output Current
22 Amps
22 Amps
Enclosure
Flanged Mount - Front IP20, NEMA Type 1; Rear = NEMA Type 4X/12 (Indoor / Outdoor), with conformal coating
Flanged Mount - Front IP20, NEMA Type 1; Rear = NEMA Type 4X/12 (Indoor / Outdoor), with conformal coating
Frame Size
Frame Size D
Frame Size D
Output Current Information
Output Amps: 22A Cont, 24.2A 1 Min, 33A 3 Sec
Output Amps: 22A Cont, 24.2A 1 Min, 33A 3 Sec
Brake IGBT
Brake IGBT
Brake IGBT
EMC Filtering Options
Second Environment Filter per CE EMC directive (89/336/EEC)
Second Environment Filter per CE EMC directive (89/336/EEC)
Base Plus Options
Base Plus Options Method
Base Plus Options Method
Human Interface Module
No HIM (Blank)
No HIM (Blank)
Internal Communication Module
No Communication Module
No Communication Module
The product offered is sold as used surplus. Texnite is not an authorized surplus dealer or affiliate of the Manufacturer associated with this product. It's possible that the product may contain older date codes or belong to an earlier series compared to items available directly from the factory or authorized dealers. As Texnite is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply.
Although numerous Allen-Bradley PLC products may contain pre-installed firmware, Texnite does not confirm whether a PLC product has firmware or if the firmware corresponds to the revision level required for your specific application. Additionally, Texnite does not guarantee or imply your capability or entitlement to download or acquire firmware for the product from Rockwell, its distributors, or any other source. Furthermore, Texnite does not assert your right to install any such firmware on the product. Texnite neither obtains nor provides firmware on behalf of customers. It remains your responsibility to adhere to the terms stated in any End-User License Agreement or a similar document related to obtaining or installing firmware.
Technical Specifications for 20AB022F0AYNANC0
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 20AB022F0AYNANC0 |
| Voltage | 240V AC |
| Ph | 3 |
| Amps | 22 |
| kW(Hp) | 5.5 (7.5) |
| Frame | D |
| Enclosure | Flange Mount - Front Chassis = IP 20, NEMA/UL Type 1; Rear Heatsink = IP66, NEMA/UL Type 4X/12 for indoor/outdoor use |
| Interface Module | Blank Cover |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Filtered A & B Frames (Optional) C, D, & D Frames (Standard) |
| Network Type | None |
| Control | Enhanced |
| Safe Off | No |
| Feedback | No Feedback - Enhanced Control |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 20AB022F0AYNANC0 |
| Voltage | 240V AC |
| Ph | 3 |
| Amps | 22 |
| kW(Hp) | 5.5 (7.5) |
| Frame | D |
| Enclosure | Flange Mount - Front Chassis = IP 20, NEMA/UL Type 1; Rear Heatsink = IP66, NEMA/UL Type 4X/12 for indoor/outdoor use |
| Interface Module | Blank Cover |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Filtered A & B Frames (Optional) C, D, & D Frames (Standard) |
| Network Type | None |
| Control | Enhanced |
| Safe Off | No |
| Feedback | No Feedback - Enhanced Control |
About 20AB022F0AYNANC0
The 20AB022F0AYNANC0 PowerFlex 70 Adjustable Frequency AC Drive, is a variable frequency drive from the PowerFlex 70 series by Allen Bradley, and it provides digital control for a 3-phase induction motor in applications requiring speed control. It operates at an AC voltage of 240V AC, with a current output of 22A, and it has a 5.5kW (7.5HP) drive power rating. It has a voltage tolerance of -10% minimum and +10% maximum at 47 to 63Hz frequency, and it has a displacement power factor of 0.92. The 20AB022F0AYNANC0’s drive efficiency is 97.5%, and it offers AC input overvoltage and under voltage trips of 285V and 138V AC, respectively, with BUS overvoltage and under voltage trips of 405V and 204V DC, respectively. The 20AB022F0AYNANC0 offers a Line Transient protection of up to 6000V, and it is designed with a Metal Oxide Varistor for both phase-to-phase and phase-to-ground protection. It can ride through short power interruption of 15 milliseconds, and it has Logic ride thru time of 2s.
The 20AB022F0AYNANC0 uses a sine-coded PWM with a programmable carrier frequency of 2 to 10 KHz for the output control, and it has an output voltage range of 0 to the rated voltage, with an output frequency range of 0 to 400Hz. It features an Open Loop with Slip Compensation (Speed Regulation) of ±0.5% of the base speed across a 40: 1-speed range, and it employs the Sensorless Vector control with full tuning and Standard Volt per Hertz control with full custom capability for the motor control. It has an Isolated Gate Bipolar Transistor (IGBT) Dynamic braking option, and it gives users two independent, and programmable Acceleration and deceleration times. It has a 110% overload capability for 1 minute and a 150% capability for 3s, and it provides Class 10 protection with a speed-sensitive response using powerful i²t Algorithm. The 20AB022F0AYNANC0 can withstand a maximum operating shock of 15G for 11ms, and it is built to operate at a temperature range of 0 to 40°C (32 to 104°F) at 5 to 95% humidity. It weighs 9.25kg, with shipping dimensions of 248.4mm x 350mm x 178.6mm, and it has IP20 Flange Mount Enclosure rating, with CL, and C-UL-us certifications.
Technical Description of 20AB022F0AYNANC0
This Allen Bradley PowerFlex 70 is a 5.5 (7.5) kW(Hp) AC Drive. This PF 70 comes with Enhanced Control, a Blank Cover, and w/Brake. This AB VFD is Frame size D and powered with 240V AC 3 Phase and 3 Amps.
