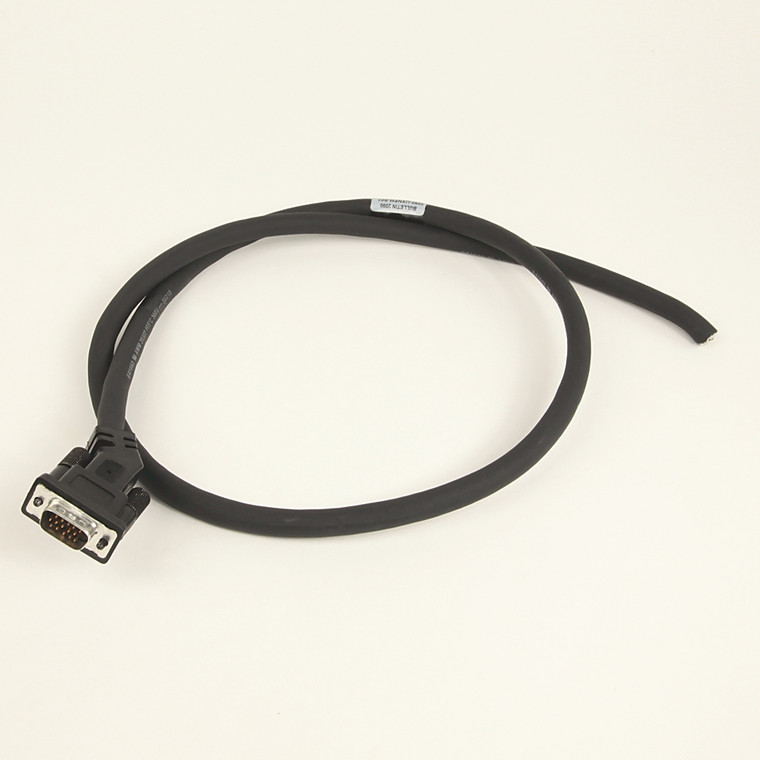

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
Description: The Allen-Bradley 2090-UXNPBMP-10S15 power cable belongs to the 2090 series of power and feedback cables. It is Series A cable with 30 meters of length, 8 AWG of wire size, and a black cable color.
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 2090-UXNPBMP-10S15
Allen Bradley
Description: The Allen-Bradley 2090-UXNPBMP-10S15 power cable belongs to the 2090 series of power and feedback cables. It is Series A cable with 30 meters of length, 8 AWG of wire size, and a black cable color.
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
2090-UXNPBMP-10S15
Description: Accessories for Motion Products
2090 Cable, UX and XX
Cable,460V,Non-Flex,Motor Power,MP,10 Gauge,15M.
Cable,460V,Non-Flex,Motor Power,MP,10 Gauge,15M.
The product offered is sold as used surplus. Texnite is not an authorized surplus dealer or affiliate of the Manufacturer associated with this product. It's possible that the product may contain older date codes or belong to an earlier series compared to items available directly from the factory or authorized dealers. As Texnite is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply.
Although numerous Allen-Bradley PLC products may contain pre-installed firmware, Texnite does not confirm whether a PLC product has firmware or if the firmware corresponds to the revision level required for your specific application. Additionally, Texnite does not guarantee or imply your capability or entitlement to download or acquire firmware for the product from Rockwell, its distributors, or any other source. Furthermore, Texnite does not assert your right to install any such firmware on the product. Texnite neither obtains nor provides firmware on behalf of customers. It remains your responsibility to adhere to the terms stated in any End-User License Agreement or a similar document related to obtaining or installing firmware.
Technical Specifications for 2090-UXNPBMP-10S15
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 2090 Cables |
| Part Number | 2090-UXNPBMP-10S15 |
| Product Description | Power Cable |
| Connector Type | Motor End Bayonet Connector, Drive End Flying Leads |
| Motor Connector | Straight |
| Flex Option | Standard, Non-flex |
| Voltage Rating | 460 Volts |
| Cable length | 15 meters |
| Wire Size | 8 AWG |
| Series | A |
| Cable Jacket Color | Black |
| Compatibility | MP-Series, 1326AB-Series |
| Applicable Drives | 2098-IPD-075, 100, 150, 220, HV100, HV150, HV220 |
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 2090 Cables |
| Part Number | 2090-UXNPBMP-10S15 |
| Product Description | Power Cable |
| Connector Type | Motor End Bayonet Connector, Drive End Flying Leads |
| Motor Connector | Straight |
| Flex Option | Standard, Non-flex |
| Voltage Rating | 460 Volts |
| Cable length | 15 meters |
| Wire Size | 8 AWG |
| Series | A |
| Cable Jacket Color | Black |
| Compatibility | MP-Series, 1326AB-Series |
| Applicable Drives | 2098-IPD-075, 100, 150, 220, HV100, HV150, HV220 |
About 2090-UXNPBMP-10S15
The 2090-UXNPBMP-10S15 power cable is a Series A, standard, non-flex power cable from Allen-Bradley/Rockwell Automation. It has been designed and tested to work with motion control applications and it is suitable for non-flexing applications. Some of the features of this cable include straight motor connectors, a non-flexible cable, and a black cable jacket. It can be easily assembled without any wiring errors. The 2090-UXNPBMP-10S15 Series A power cable comes with 460 Volts of voltage rating, a 15-meter cable length, and an 8 AWG wire size. For easy connection, the cable has flying lead at the drive end and bayonet connector at the motor end. Use a connector kit or breakout components for the drive end terminations.
The 2090-UXNPBMP-10S15 power cable is an excellent power solution for connecting servo motors to drives. The insulation of the cable has a lower operating and shield capacitance than the traditional motor power supply cables. The conductors inside the cable are large enough to withstand motor load currents. The cable has enough insulation to prevent voltage peaks from causing damage to the cable. The 2090-UXNPBMP-10S15 power cable is designed for use with the 2098-IPD-075, 100, 150, 220, HV100, HV150, and HV220 drives. It is also compatibile with the MP-series and 1326AB-series servo motors. The power cable connectors must not be disconnected or reconnected as long as voltage is present. The proper pin arrangement of the power cable is connecting the green/yellow, blue, black, and brown wires of the cable to the GND, W, V, and U ports of the motor and drive. If the excess cable cannot be trimmed, it should be laid in an "S" shape or figure-eight pattern. This cable is developed for fixed and high-performance applications such as material handling and converting applications.
