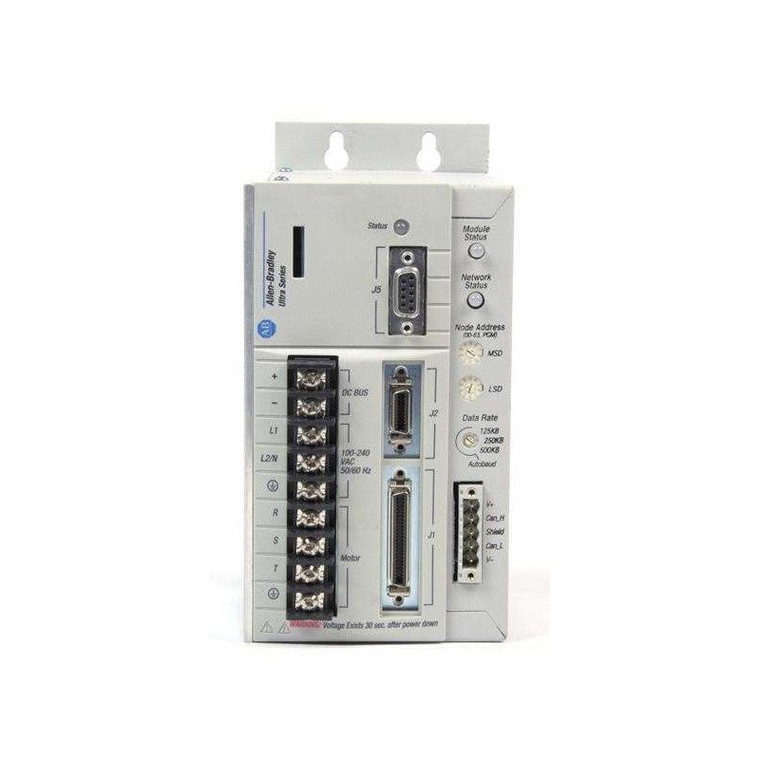

The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1398DDM030X
- DISCONTINUED BY MANUFACTURER 11/30/2010
- ULTRA 200
- UNIVERSAL DIGITAL SERVO DRIVE
- 110/240V AC; 50/60 HZ 1-PHASE
- 30A PEAK
- 3000 WATTS CONTINUOUS OUTPUT POWER
- BRUSHLESS SERVO
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.
Allen Bradley 1398-DDM-030X Used Surplus
Allen Bradley - 1398DDM030X
- DISCONTINUED BY MANUFACTURER 11/30/2010
- ULTRA 200
- UNIVERSAL DIGITAL SERVO DRIVE
- 110/240V AC; 50/60 HZ 1-PHASE
- 30A PEAK
- 3000 WATTS CONTINUOUS OUTPUT POWER
- BRUSHLESS SERVO
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Technical Specifications for 1398-DDM-030X
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Weight | 14.28 lbs (6.48 kg) |
| Dimensions | 14.2 x 4.10 x 8.93 in (360.6 x 104.1 x 226.8 mm) |
| Operating Temperature | 32-131 F (0-55 C) |
| Continuous Power Output | 120 Volts rms 1.8 kWatts; 240 Volts rms 3 kWatts |
| Peak Power Output | 120 Volts rms 3.75 kWatts; 240 Volts rms 7.5 kWatts |
| Output Peak Current | 30 amps |
| Bus Voltage | 141-339 Volts (DC) |
| AC Input Current | 28 amps rms |
| AC Input Voltage | 100-240 rms Volts Nominal (Single Phase) |
| AC Input Frequency | 47-63 Hz |
| Part Number/Catalog No. | 1398-DDM-030X |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Weight | 14.28 lbs (6.48 kg) |
| Dimensions | 14.2 x 4.10 x 8.93 in (360.6 x 104.1 x 226.8 mm) |
| Operating Temperature | 32-131 F (0-55 C) |
| Continuous Power Output | 120 Volts rms 1.8 kWatts; 240 Volts rms 3 kWatts |
| Peak Power Output | 120 Volts rms 3.75 kWatts; 240 Volts rms 7.5 kWatts |
| Output Peak Current | 30 amps |
| Bus Voltage | 141-339 Volts (DC) |
| AC Input Current | 28 amps rms |
| AC Input Voltage | 100-240 rms Volts Nominal (Single Phase) |
| AC Input Frequency | 47-63 Hz |
| Part Number/Catalog No. | 1398-DDM-030X |
About 1398-DDM-030X
The 1398-DDM-030X ULTRA 200 digital servo drive by Allen-Bradley lets users manage and monitor machine velocity, position, and current via a Motorola 68HC16 microcontroller. It allows interface through the digital and analog inputs and outputs. The digital input interface of the 1398-DDM-030X ULTRA is a selectable, 24-volt optically-isolated circuit input, and a 5.0mA input channel sink digital ENABLE input interface that controls the ENABLE and DISABLE functions of the drive. The 1398-DDM-030X has two discrete output circuit connected via the J1 connector.
The digital output interface of the 1398-DDM-030X comprises the dedicated relay outputs (which are rated 1 Amps at 50 Volts and DRIVE READY rated at 100mA at 50 Volts) and the selectable transistor based outputs (OUTPUT 1, OUTPUT 2, OUTPUT 3, OUTPUT 4.) The analog interface comprises two input interfaces (current limiting input and the command support input), and two analog output interfaces (Analog 1 and Analog 2). The 1398-DDM-030X ULTRA is CE marked, and UL and cUL certified, and it also comes in a certified NEMA 12 enclosure type. It has an adjustable automatic sensing and fused power output encoder interface rated at 5 to 7 Volts. It also has a 5 Volts power supply encoder motor output, with 200% overload protection for 8 minutes., and 600% motor overload protection for 20 seconds.
The 1398-DDM-030X come with a 512 KB user parameter memory with 24 KB of RAM and a 128 KB flash memory with a 20 -year data retention value. The 1398-DDM-030X has an auxiliary input voltage rating RMS of 100 to 240 Volts AC at 1.0 Amps RMS (100 Volts) current and 0.5 Amps RMS (240 Volts) with a frequency between 47 and 63 Hertz. It also has a voltage rating of 100 to 240 Volts AC at 47 to 63 Hertz and 28 Amps RMS current. The 1398-DDM-030X has a BUS voltage rating range between 141 and 339 Volts DC and a continuous output current of 15 Amps that peaks at 30 Amps. It has 97 joules BUS capacitance energy absorption with 4.5 kW power rated internal shunt. It has a continuous output power of 1.8 kW at 100 Volts and 3 kW at 240 Volts with a BUS capacitance of 2730µF. The 1398-DDM-030X has 150W power dissipation at an operational temperature of 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit). It has a weight of 6.48 kilograms (14.28 pounds), and dimensions of 360.6 x 104.1 x 226.8 millimeters (14.2 x 4.10 x 8.93 inches).
Technical Description of 1398-DDM-030X
The Allen-Bradley 1398-DDM-030X has a 32-131 F (0-55 C) Operating Temperature, a 120 Volts rms 1.8 kWatts; 240 Volts rms 3 kWatts Continuous Power Output, and a 141-339 Volts (DC) Bus Voltage. It also contains a 120 Volts rms 3.75 kWatts; 240 Volts rms 7.5 kWatts Peak Power Output and a 30 amps Output Peak Current.
