Allen Bradley 1398-DDM-010 Used Surplus
  • 1398DDM010
  • DISCONTINUED BY MANUFACTURER 11/30/2010
  • ULTRA 200 SERIES
  • UNIVERSAL DIGITAL SERVO DRIVE
  • 230V AC SINGLE PHASE
  • 19A PEAK
  • BRUSHLESS SERVO
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.

Allen Bradley 1398-DDM-010 Used Surplus
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.

Allen Bradley 1398-DDM-010 Used Surplus

Allen Bradley
Part
#1398-DDM-010
Condition:
Used
9 in stock
$1,487.00
Adding to cart… The item has been added
  • 1398DDM010
  • DISCONTINUED BY MANUFACTURER 11/30/2010
  • ULTRA 200 SERIES
  • UNIVERSAL DIGITAL SERVO DRIVE
  • 230V AC SINGLE PHASE
  • 19A PEAK
  • BRUSHLESS SERVO
  • FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED

QUICK DELIVERY

FREE SHIPPING

1 YEAR WARRANTY

EASY RETURNS

Questions?

Speak with a real person who will go out of the way to help!

Call

833 839 6483

 Mail

sales@texnite.com
Start

Chat

Reviews

Description

    Technical Specifications for 1398-DDM-010

ManufacturerRockwell Automation
BrandAllen-Bradley
Weight13.78 lbs (5.80 kg)
Dimensions14.2 x 4.10 x 8.93 in (360.6 x 104.1 x 226.8 mm)
Operating Temperature32-131 F (0-55 C)
Continuous Power Output120 Volts rms 0.6 kWatts; 240 Volts rms 1.0 kWatts
Peak Power Output120 Volts rms 0.6 kWatts; 240 Volts rms 2.5 kWatts
Output Peak Current10 amps
Bus Voltage141-339 Volts (DC)
AC Input Current10 amps rms
AC Input Voltage100-240 rms Volts Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.1398-DDM-010
ManufacturerRockwell Automation
BrandAllen-Bradley
Weight13.78 lbs (5.80 kg)
Dimensions14.2 x 4.10 x 8.93 in (360.6 x 104.1 x 226.8 mm)
Operating Temperature32-131 F (0-55 C)
Continuous Power Output120 Volts rms 0.6 kWatts; 240 Volts rms 1.0 kWatts
Peak Power Output120 Volts rms 0.6 kWatts; 240 Volts rms 2.5 kWatts
Output Peak Current10 amps
Bus Voltage141-339 Volts (DC)
AC Input Current10 amps rms
AC Input Voltage100-240 rms Volts Nominal (Single Phase)
AC Input Frequency47-63 Hz
Part Number/Catalog No.1398-DDM-010
s

About 1398-DDM-010

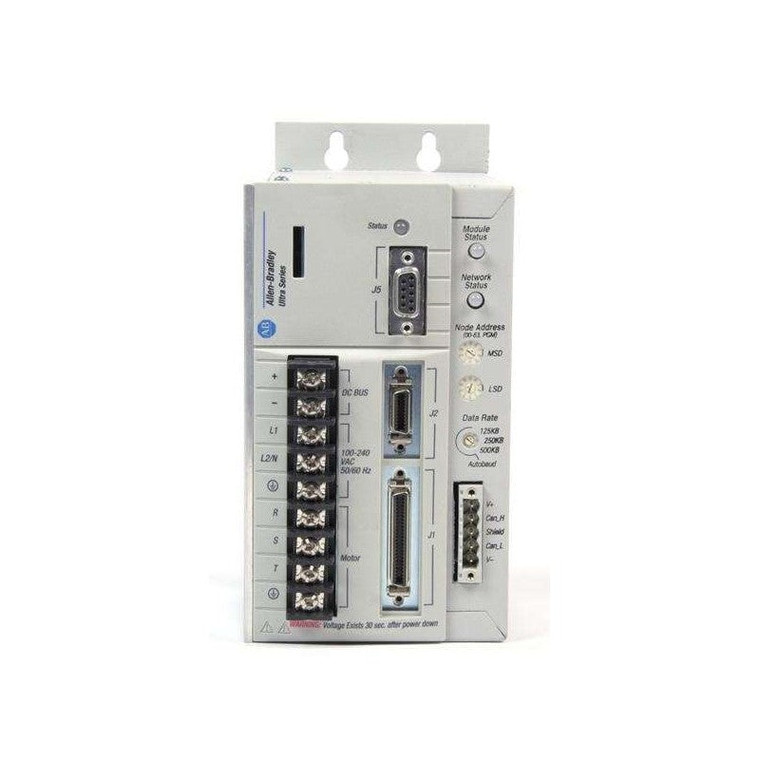

The Allen-Bradley 1398-DDM-010 ULTRA 200 â„¢ is a small universal digital servo drive. It weighs only 14.02 lbs and it measures only 14.2 x 4.1 x 8.93 inches. Although this module is lightweight, it is equipped with one air intake and one air exhaust vent. In this module, there is a touchpad insertion slot. The 1398-DDM-010 touchpad is designed to modify the desired operation according to existing parameters. In this module, there are 2 serial connectors that simplify RS-485 multi-dropping and facilitate host communication. There are 2 front panel indicators showing the status of the 1398-DDM-010 drive. The first one is for displaying the status of the operation and the second one (DC Bus LED) displays whether the bus has been energized. The 7-segment status display shows the status of the 1398-DDM-010 drive whether it is operating or not.





The 1398-DDM-010 has a peak output current of 10A. The internal continuous output current of this module is 5A while the internal continuous output power of the 1398-DDM-010 is 1 kW. The operating temperature of the 1398-DDM-010 is -5-55 °C. Please store this module in an area that has a -40-70 °C temperature to avoid damage. The input frequency of this module is 47-63 Hz. This module’s lowest continuous current input is 10A. The input voltage of the 1398-DDM-010 varies from 100-240V AC. The PWM carrier frequency of this module is 10 kHz or 5 kHz.
