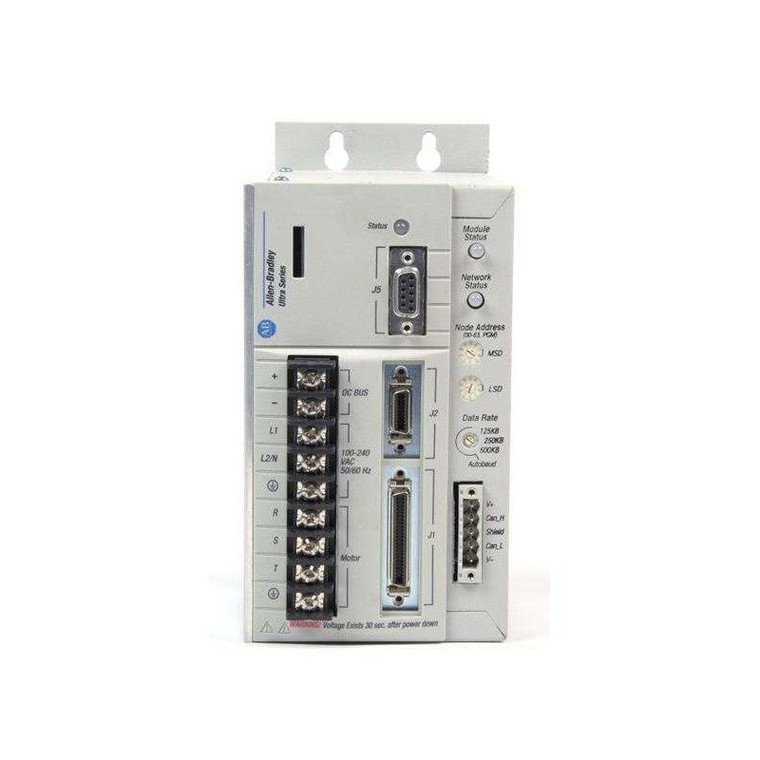

Allen Bradley 1398-DDM-009 Used Surplus

The Allen Bradley 1398-DDM-00 ULTRA 100 Series module is part of a family of universal digital drives. Generally, ULTRA 100 Series drives use microcontrollers to digitally manage the current, velocity, and position of an application. Digital I/O channels allow the user to program the drive to fit a specific application. Power for the I/O of this module must be supplied by a 12 to 24 Volt DC external I/O power source. Some available selections include a single unit, fully enclosing all electronics. An external transformer is not required on the power line. All connectors and indicators are accessible and clearly marked on the front panel.  It is important to keep this unit at a temperature between 32 degrees to 131 degrees Fahrenheit with humidity between 5% and 95%, non-condensing. The drive requires an external 12 to 24 Volt DC power source for the inputs and outputs.  The ULTRA 100 Series is compatible with many motors, drives, and motor parameters; all compatible motors are programmed into each ULTRA 100 Series drive at the factory. Generally, F, H, N, W, and Y series motors will be compatible with Ultra 100 Series drives.

The operating temperature range for this module is 0 to 55 degrees Celsius or 32 to 131 degrees Fahrenheit.
