3 in stock
Speak with a real person who will go out of the way to help!
The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1336B025EAFS1
- DISCONTINUED BY MANUFACTURER
- AC DRIVE
- 1336 ADJUSTABLE FREQUENCY
- 460 VAC
- 50/60 HZ
- 18.6 KW / 25 HP
- 41 AMP
- IP20 / NEMA 1 ENCLOSURE
- SERIAL PORT CONNECTOR
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.

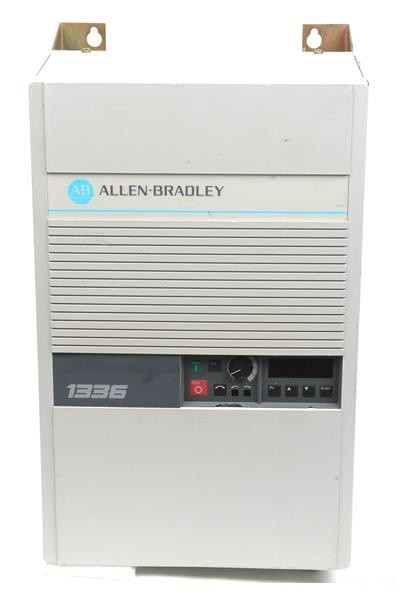

Allen Bradley 1336-B025-EAF-S1 Used Surplus
Allen Bradley- 1336B025EAFS1
- DISCONTINUED BY MANUFACTURER
- AC DRIVE
- 1336 ADJUSTABLE FREQUENCY
- 460 VAC
- 50/60 HZ
- 18.6 KW / 25 HP
- 41 AMP
- IP20 / NEMA 1 ENCLOSURE
- SERIAL PORT CONNECTOR
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
Technical Specifications for 1336-B025-EAF-S1
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B025-EAF-S1 |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hertz | 50/60 |
| Phases | 3 |
| Amps Out | 41 |
| KVA Out at 380V AC | 27 |
| KVA Out at 415V AC | 29 |
| KVA Out at 460V AC | 33 |
| Enclosure Type | NEMA Type 1 (IP20) |
| Enclosure Amp Rating | 025 or 030 |
| Bulletin | 1336 |
| Option | Serial Port connector |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B025-EAF-S1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B025-EAF-S1 units instead of migration.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B025-EAF-S1 |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hertz | 50/60 |
| Phases | 3 |
| Amps Out | 41 |
| KVA Out at 380V AC | 27 |
| KVA Out at 415V AC | 29 |
| KVA Out at 460V AC | 33 |
| Enclosure Type | NEMA Type 1 (IP20) |
| Enclosure Amp Rating | 025 or 030 |
| Bulletin | 1336 |
| Option | Serial Port connector |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B025-EAF-S1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B025-EAF-S1 units instead of migration.
sAbout 1336-B025-EAF-S1
The 1336-B025-EAF-S1 belongs to the classic 1336 series of adjustable frequency AC drives. The AC drive is one of many PLC modules solely manufactured by Allen-Bradley/Rockwell Automation. Although newer versions are available, classic drives are still being used in most PLC systems. The 1336-B025-EAF-S1 complies with the standards set by the National Electrical Manufacturer Association (NEMA). The Allen-Bradley 1336-B025-EAF-S1 has 41.0 amps of current output, a sturdy frame with dimensions of 11.13 inches by 8.76 inches by 18.75 inches, and additional support for connecting programming terminals. Among other features, what sets the 1336-B025-EAF-S1 apart is its factory installed serial port connector (S1). The serial port connector allows the programmer to view parameters and make changes if required. The addition of a serial port connector reduces the system downtime because most of the manipulation can be done without switching off the drive. For this purpose, a hand-held 1336-MOD-E1 programming terminal is used. Just plug the hand-held terminal into the 1336-B025-EAF-S1 serial port and adjust the parameters in live mode.
The Allen-Bradley 1336-B025-EAF-S1 has a drive rating code “B” that the drive has a frequency of 50 to 60 Hertz and it has 3-phase power. The maximum torque generated by the Allen-Bradley 1336-B025-EAF-S1 is more than 2.26 N-m (about 20 pounds on an inch). The rating code “025” means that users can connect the drive with either 380 Volts AC, 415 Volts AC, or 460 Volts AC power supply. Based on the input voltage, the AC drive generates 27.0 kVA, 29.0 kVA, or 29.0 kVA of output. To maintain the flow of such high voltage, the drive should have 75 degrees Celsius copper wiring and the wire size should be 16 millimeters (6 American Wire Gauge). The 1336-B025-EAF-S1 has a lot of small components, therefore it is absolutely vital to go through and understand the manuals thoroughly to prevent incorrect wiring or other system faults. To install drive components, replace parts and service the AC drive, it is recommended that the power supply be disconnected. Make sure that there is no hazardous voltage left in the drive components, otherwise it could cause serious injury as well as damage low-voltage components.
Technical Description of 1336-B025-EAF-S1
The Allen-Bradley 1336-B025-EAF-S1 Adjustable Frequency AC Drive operates with a 380/415/460V A Input Voltage, 50/60 Hz, and 3 Phases. The 1336-B025-EAF-S1 has 41 Amps Out and a NEMA Type 1 (IP20) Enclosure Type.
