2 in stock
Speak with a real person who will go out of the way to help!
The picture shown is for representative purposes only. The actual product delivered corresponds to the part number you ordered.
- 1336B005EADFA2L3
- DISCONTINUED BY MANUFACTURER
- DRIVE
- 5.7-6 AMPS
- 380/415/460 VAC
- 50/60 HZ
- 3.8/4.1/4.5 KVA
- 3-PHASE
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
Texnite is not an authorized distributor, reseller, or representative of the products displayed or mentioned on this website. All product names, trademarks, brands, and logos used or referred to on this site remain the property of their respective owners. The depiction, description, or sale of products showcasing these names, trademarks, brands, and logos is solely for identification purposes and does not imply or intend to indicate any affiliation with or authorization by any rights holder.
Texnite is NOT an authorized distributor, affiliate or representative for the Manufacturer.
Product is surplus. Manufacturer's warranties do NOT apply.
Product is surplus. Manufacturer's warranties do NOT apply.

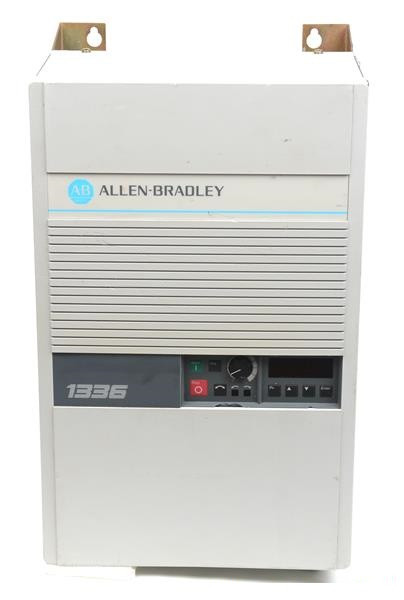

Allen Bradley 1336-B005-EAD-FA2-L3 Used Surplus
Allen Bradley- 1336B005EADFA2L3
- DISCONTINUED BY MANUFACTURER
- DRIVE
- 5.7-6 AMPS
- 380/415/460 VAC
- 50/60 HZ
- 3.8/4.1/4.5 KVA
- 3-PHASE
- FACTORY WARRANTY DOES NOT APPLY. TEXNITE 1-YEAR WARRANTY INCLUDED
QUICK DELIVERY
FREE SHIPPING
1 YEAR WARRANTY
EASY RETURNS
Reviews
Technical Specifications for 1336-B005-EAD-FA2-L3
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B005-EAD-FA2-L3 |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hz | 50/60 |
| Phases | 3 |
| Amps Out | 9.6 |
| KVA Out @ 380V AC | 6.3 |
| KVA Out @ 415V AC | 6.9 |
| KVA Out at 460V AC | 7.6 |
| Enclosure Type | NEMA Type 1 (IP20) |
| Enclosure Amp Rating | 003, 005, 007, or 010 |
| Bulletin | 1336 |
| Option | 115 V AC Logic Interface Board. |
| Option | Basic control panel for open or NEMA Type 1 enclosures |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B005-EAD-FA2-L3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B005-EAD-FA2-L3 units instead of migration.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1336-B005-EAD-FA2-L3 |
| Product Type | Adjustable Frequency AC Drive |
| Input Voltage | 380/415/460V AC |
| Hz | 50/60 |
| Phases | 3 |
| Amps Out | 9.6 |
| KVA Out @ 380V AC | 6.3 |
| KVA Out @ 415V AC | 6.9 |
| KVA Out at 460V AC | 7.6 |
| Enclosure Type | NEMA Type 1 (IP20) |
| Enclosure Amp Rating | 003, 005, 007, or 010 |
| Bulletin | 1336 |
| Option | 115 V AC Logic Interface Board. |
| Option | Basic control panel for open or NEMA Type 1 enclosures |
| Product Lifecycle Status* | Discontinued/Obsolete |
*The Allen Bradley 1336-B005-EAD-FA2-L3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-B005-EAD-FA2-L3 units instead of migration.
sAbout 1336-B005-EAD-FA2-L3
The Allen Bradley 1336-B005-EAD-FA2-L3 Digital AC Drive is a variable frequency drive in the 1336 family of high-performance drives, which provides digital control of induction motors, in a wide range of applications. This drive, similarly to most 1336 drives is digitally programmed to provide out of the box motor control using the standard Volt per Hertz, and it comes with an IP20 rated industrial enclosure suited for a harsh industrial condition. This drive is rated 9.6 Ampere, which is suited for direct 3-phase 380 to 460 Volt AC voltage connection, and it has a tolerance range of ±10% at 48 to 62 Hertz. This drive has 6.3 Kilo Volt-Ampere rated power output at 380 volt AC and 7.6 Kilo Volt-Ampere at 460 Volt AC, and it has a rated input power factor of 0.95. Like most Allen Bradley AC drives, the 1336-B005-EAD-FA2-L3 and all 1336 Classic drives are designed to provide the fast-acting current limiting capability, and BUS voltage regulation for optimum performance. It is capable of providing Line Transient protection of up to 5000 Volts, and it is also capable of riding faultlessly through 2 seconds (max.) power loss. The 1336-B005-EAD-FA2-L3 is designed to provide sine coded PWM output waveform, with a programmable output frequency range of 0 to 250 Hertz, and it offers a selectable output voltage range between 0 Volts to the maximum applied input voltage. This drive offers 2 fully programmable acceleration and deceleration times, which are configured separately from 0 to 600 seconds, and it also provides current limiting between 50% and 150% of rated output current for a 60-second duration. The 1336-B005-EAD-FA2-L3 is designed to detect and correct the output ground fault by unbalance in an input line current and it provides an overload capacity of up to 180% of a rated output current. It is programmed locally via a control panel option (FA2) pre-installed on the drive, and it also offers a control interface board option (L3) with default command functions. It has a functional temperature range of 0 to +40 degree Celsius, around 5% to 95% non-condensing relative humidity range, and it has a total heat dissipation of 477 BTU/Hour. The 1336-B005-EAD-FA2-L3 weighs approximately 16.5 Kilograms, and it has a total shipping dimension of 283 x 477 x 223 millimeters.
Technical Description of 1336-B005-EAD-FA2-L3
The Allen-Bradley 1336-B005-EAD-FA2-L3 Adjustable Frequency AC Drive operates with a 380/415/460V A Input Voltage, 50/60 Hz, and 3 Phases. The 1336-B005-EAD-FA2-L3 has 9.6 Amps Out and a NEMA Type 1 (IP20) Enclosure Type.
