Allen Bradley 1336-120712

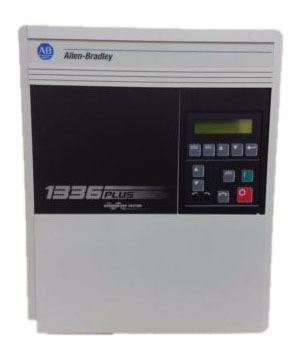

The Allen-Bradley 1336-120712 is a Drive Board with a Local Operator Station for the 1336 series of AC drives. It is used as an operator interface for the Allen-Bradley 1336 series of AC drives in order to help users in the programming process, commissioning, and troubleshooting. Users can buy 1336 series AC drive without this option and install it later on, in order to enhance the drive’s capabilities. The 1336-120712 spare part will be a valuable addition to any 1336 series AC drive control. This operator station board is connected directly to the Main Circuit Board. For safety, this board is protected over MCB internal protecting features (transient protection, logic ride through, power ride through, and overload). For control and troubleshooting purposes the user can interact with the drive over the speed potentiometer, the start, and the stop, jog, and direction change buttons. There are also two light indicators for motor rotation direction visualization.

Always turn the speed potentiometer fully counterclockwise before applying the power to the AC drive. During the startup, the display should light and display F01 and then after 3 seconds, three little lines will appear. If there is any fault in the system its code will be displayed after 3 seconds. If there is a fault, it should be recorded and the drive should be immediately shut down; then the user may determine the fault source. The 1336-120712 drive board can be used in surroundings with temperatures below 50 degrees Celsius (122 degrees Fahrenheit) and it can be stored at -40 to 70 degrees Celsius (-40 to 168 degrees Fahrenheit) ambient temperatures. Its shipping weight is approximated at 1 kilogram (2.2 pounds).
