Allen Bradley 1326AB-B2E-11-3396C Used Surplus

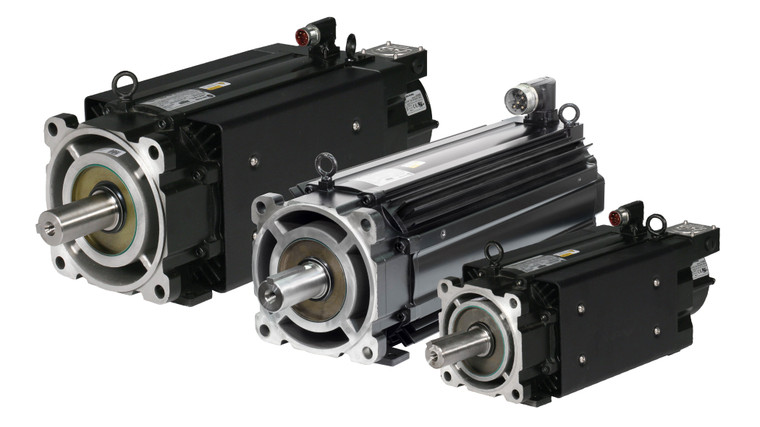

The 1326AB-B2E-11-3396C is an AC Servo Motor manufactured by Allen-Bradley. This module is part of Allen-Bradley’s Torque Plus series that has a personalized engineered housing, designed to reduce the motor length and increase torque ratings. This is three-phase synchronous performance motor with a 2.5 kW power rating and a 16.4 Amp maximum current rating. This module is designed to work with 3000 RPM and has a continuous stall torque of 102.0 pounds on an inch. The resistance of this motor is 311 Ohms while the rotor inertia of this AC servo motor is around 0.05 pounds per inch per second squared (0.006 kg-m2). This is standard inch combination face flange mount device. Some special features of this exact bulletin 1326 AC servo motor are its conduit box and its protective shaft seal.

The Allen-Bradley 1326AB-B2E-11-3396C is supplied with a 380 to 460 Volt AC three-phase voltage. This module is capable of smooth operation, even at low speeds. It sends feedback information over an integrated resolver; this information is then processed by a motion controller (the 1394 Motion Control System manufactured by Allen-Bradley is recommended for use) which provides perfect control of the AC servo motor speed. This device can also be upgraded with options available for Bulletin 1326 motors, including spring-set holding brakes, a junction box kit, or a secondary feedback. The maximum ambient temperature that this motor can withstand without derating is 40 degrees Celsius. It can, however, withstand shocks and vibrations, so it is widely applied on factory floors. The weight of the device is around 61 pounds (27.7 kilograms). The overall dimensions of the item are 17.16 x 5.88 x 5.88 inches (436 x 149 x 149 millimeters). This product is discontinued by the manufacturer.
