Allen Bradley 1326AB-A3E-21 Used Surplus

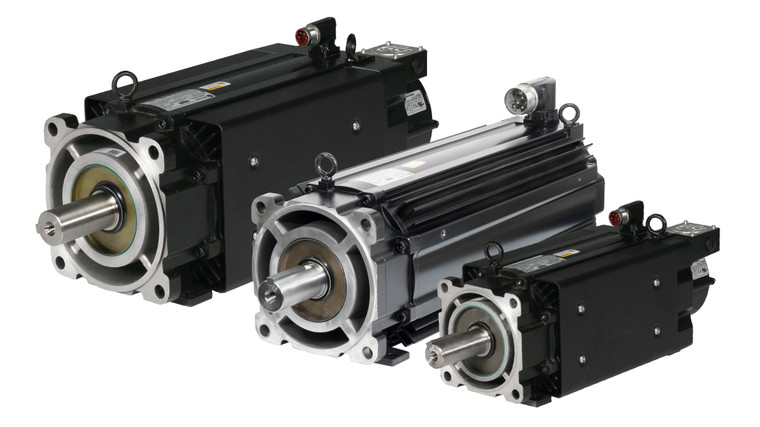

The Allen-Bradley 1326AB-A3E-21 servo motor is a three-phase, brushless, AC servo motor. It belongs to the 1326AB family of servo motors. These servo motors are compatible with the Allen-Bradley 1391 AC servo controllers. It has 3000 rpm of maximum operating speed and a 108-millimeter frame diameter. It also has a 5.4 N-m (48 pounds on an inch) of system continuous torque and 1.2 kilowatts of motor rated output. Its operating current is 7.8 Amps. The 1326AB-A3E-21 is manufactured for use in the factory based applications. It weighs 16.8 kilograms (37 pounds).

The 1326AB-A3E-21 servo motor comes with a NEMA/IEC metric flange with a keyway, standard MIL-spec connectors, and a fully enclosed non-ventilated (TENV) construction. Due to the absence of onboard electronics in the motor, the IP 65 rated 1326AB-A3E-21 AC servo motor can be used in harsh environments. It works with full torque at high speed. Its high-resolution encoders provide smooth operation.  The motor has directly integrated thermal overload indication from a normally closed thermal switch as a safety solution. There are some other options available for the 1326AB-A3E-21 servo motor such as a shaft oil seal kit, encoder mounting adapters, resolver feedback packages, a junction box kit, and a blower cooling kit. All these optional kits are supplied as motor accessories and separate items. When the motor shaft is subjected to occasional oil splashes, the shaft oil seal kit can be used. The motor junction box kit provides axially mounted connectors while maintaining the IP 65 rating of the motor. These servo motors can be used for a variety of applications such as factory automation, assembly line, automated manufacturing, and automobile manufacturing applications.
